Maximize Your RV's Potential with Underchassis Storage Bins for Clutter-Free Adventure

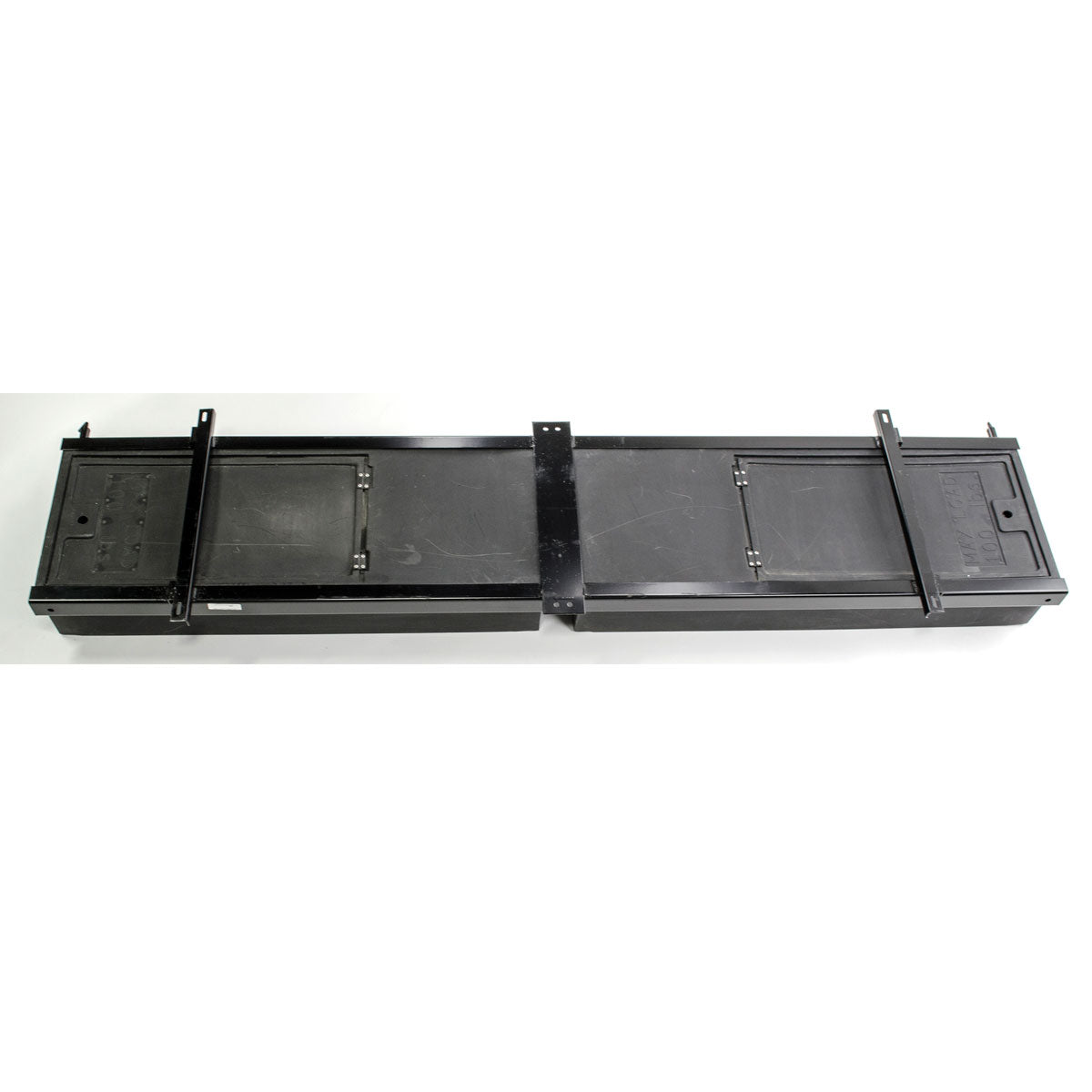

Maximize your RV’s storage with the Lippert Underchassis Large Double Bin Storage System, offering two spacious, detachable bins that each hold up to 100 pounds of gear. The rust-resistant steel frame and spring-loaded latch system ensure easy, reliable access and long-lasting durability, while secure bolt-on installation keeps your items safe on the road. Perfect for organizing tools, outdoor gear, and essentials, this storage solution is built to handle the demands of any adventure.---

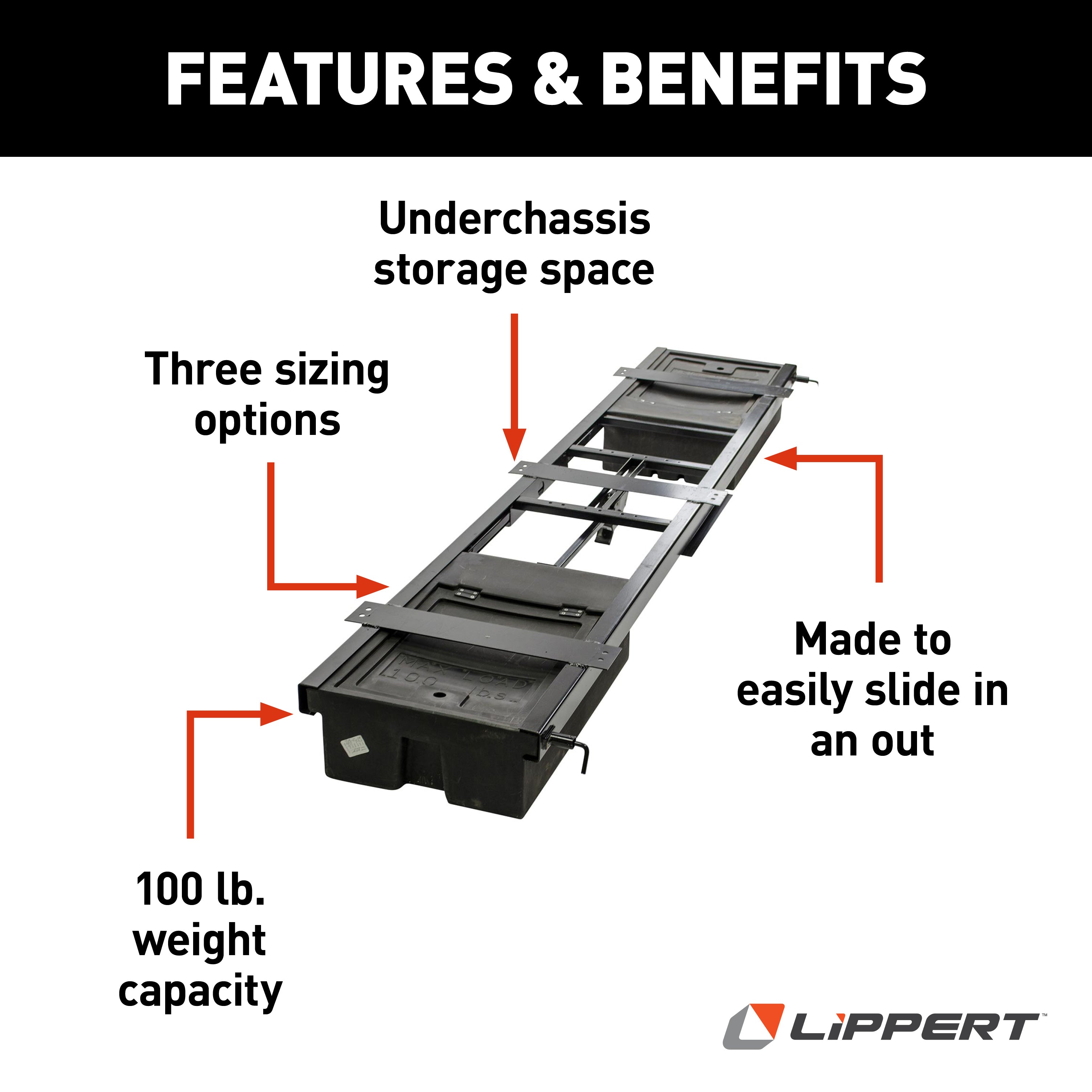

- OPTIMAL SPACE — Lippert underchassis storage bins provide an efficient solution for freeing up space inside your RV and tow vehicle. By storing cables, cleaning supplies, and other essentials underneath the chassis, you gain more room for living or additional gear inside your RV

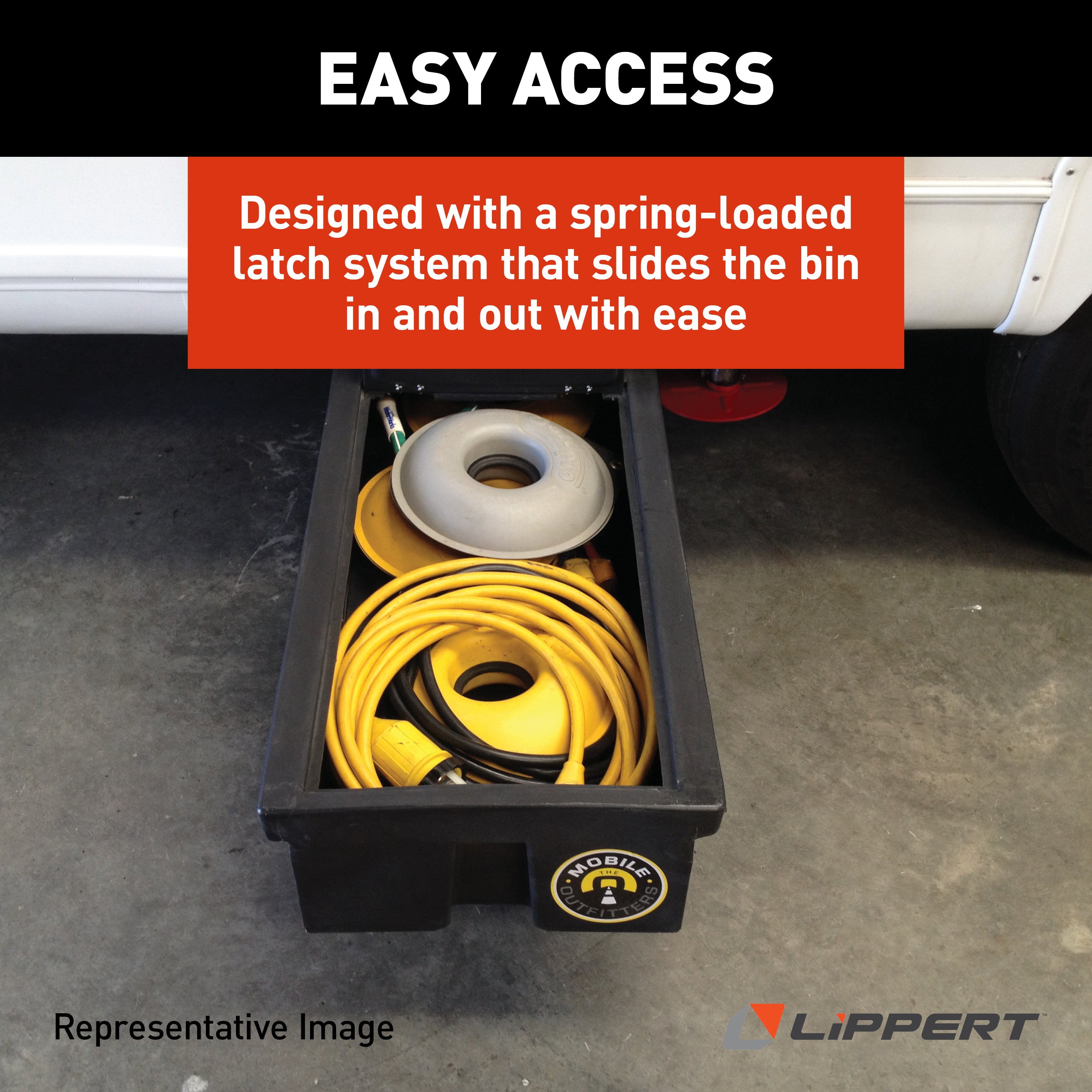

- EASY ACCESS — The spring-loaded latch system allows for quick and effortless access to your stored items. With a simple slide-in and-out mechanism, the bins offer easy reach to your supplies without hassle
- BUILT TOUGH — Engineered to carry up to 100 pounds of gear, these underchassis storage bins are built to withstand rugged camping conditions. Made with a rust-inhibitive coating on steel parts, these bins are designed to endure exposure to the elements and offer long-lasting durability
- MULTIPLE SIZES — Whether you require extra room for large items or prefer a more compact solution for your gear, Lippert underchassis bins offer versatile sizing options to suit different RV setups and equipment storage demands

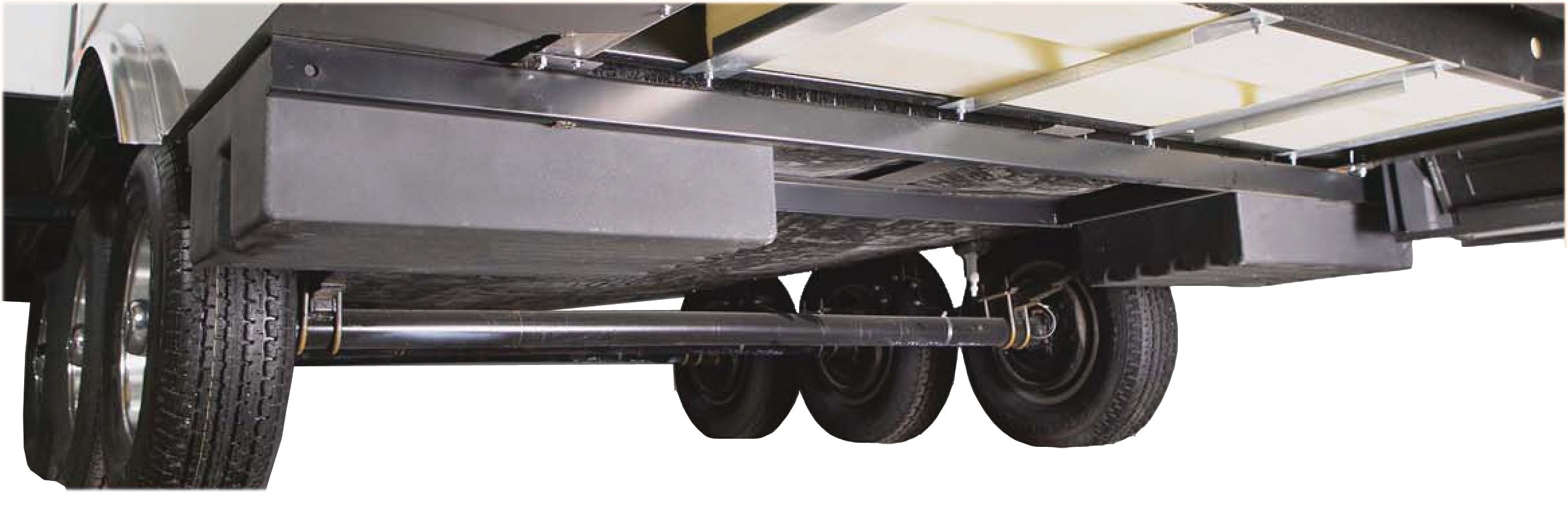

- SECURE INSTALLATION — The underchassis storage bins bolt securely to your RV’s frame, providing a reliable and stable storage solution, while keeping cargo safely stowed during transit
Make room for more gear with an underchassis RV storage bin from Lippert. We help you save space and fit everything you need into your home away from home. The detachable storage boxes bolt onto the RV chassis (hardware not included) and are perfect for cables, cleaning supplies, and other miscellaneous camping items. Using a spring-loaded latch system, these bins are easy to slide in and out so you can access all of your gear hassle-free.
Our underchassis RV cargo bins are available in multiple sizes and come complete with two detachable molded storage boxes with lids (standard option: 27.875" length x 17" width x 8" height or large option: 48" length x 19" width x 9" height). Mounting hardware is not included.
- Rust-inhibitive coating on steel parts

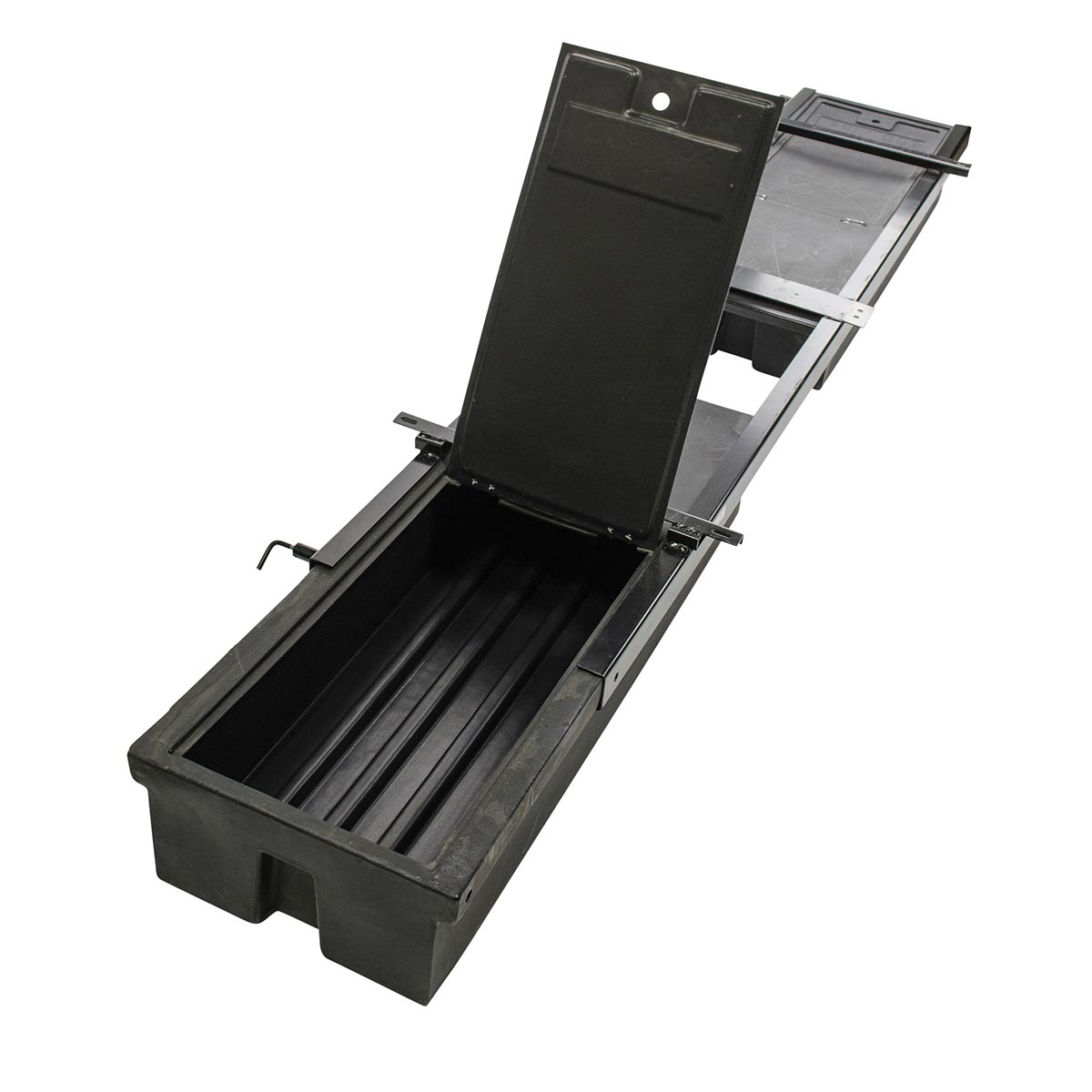

- Comes with two detachable molded storage boxes with lids

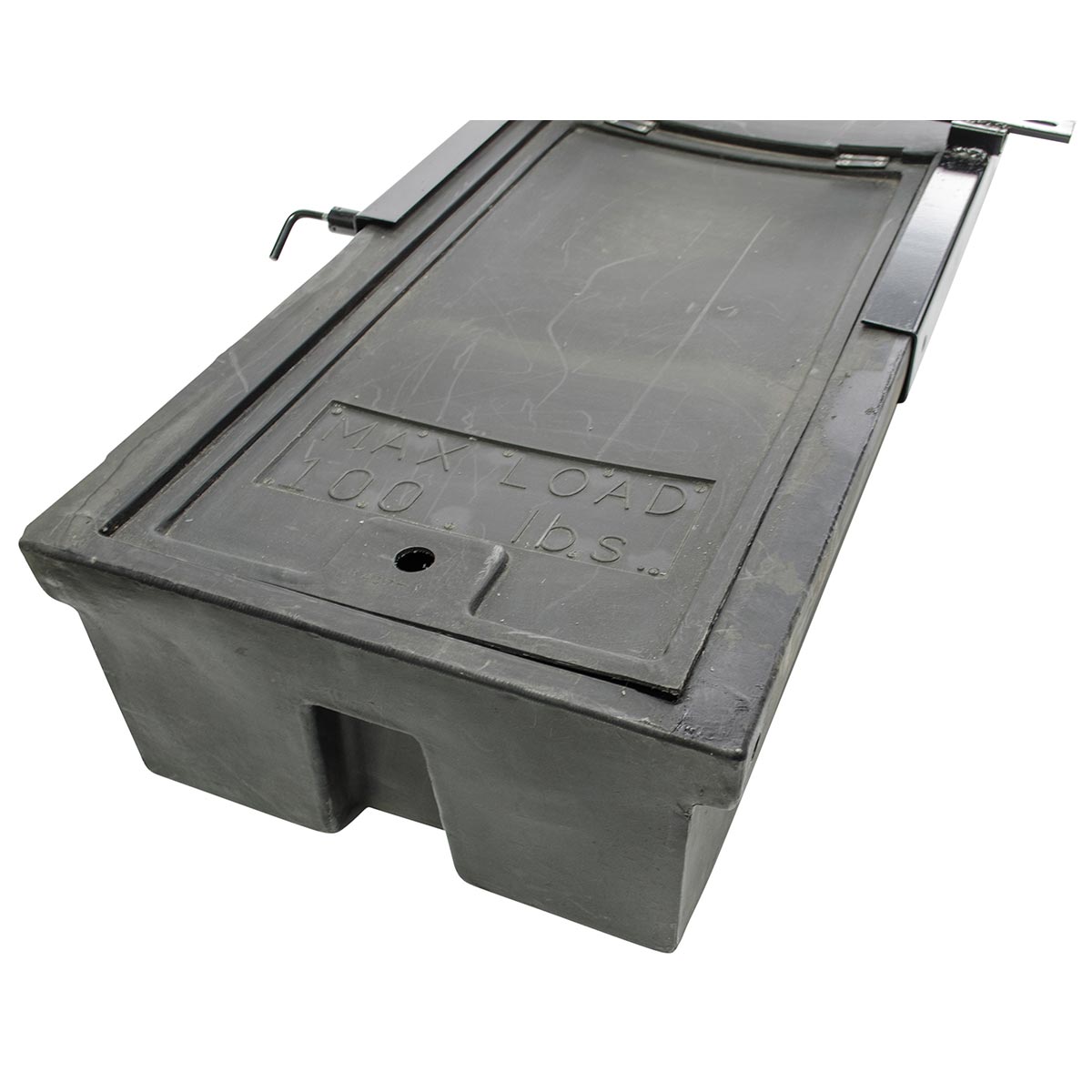

- Each storage bin can support up to 100 lbs.
- Mounting hardware not included
- Spring-loaded latch allows storage compartment to easily slide in and out
- Optional trim kit sold separately
| Material | Steel with rust-inhibitive coating |
|---|---|
| Width (inches) | 24 |
| Height (inches) | 10 |
| Length (inches) | 99 |
| Storage box material | Molded plastic |
| Number of storage boxes | 2 |
| Physical weight (pounds) | 80 |
| Weight capacity (pounds) | 100 |
| Storage box width (inches) | 19 |
| Storage box height (inches) | 9 |
| Storage box length (inches) | 48 |

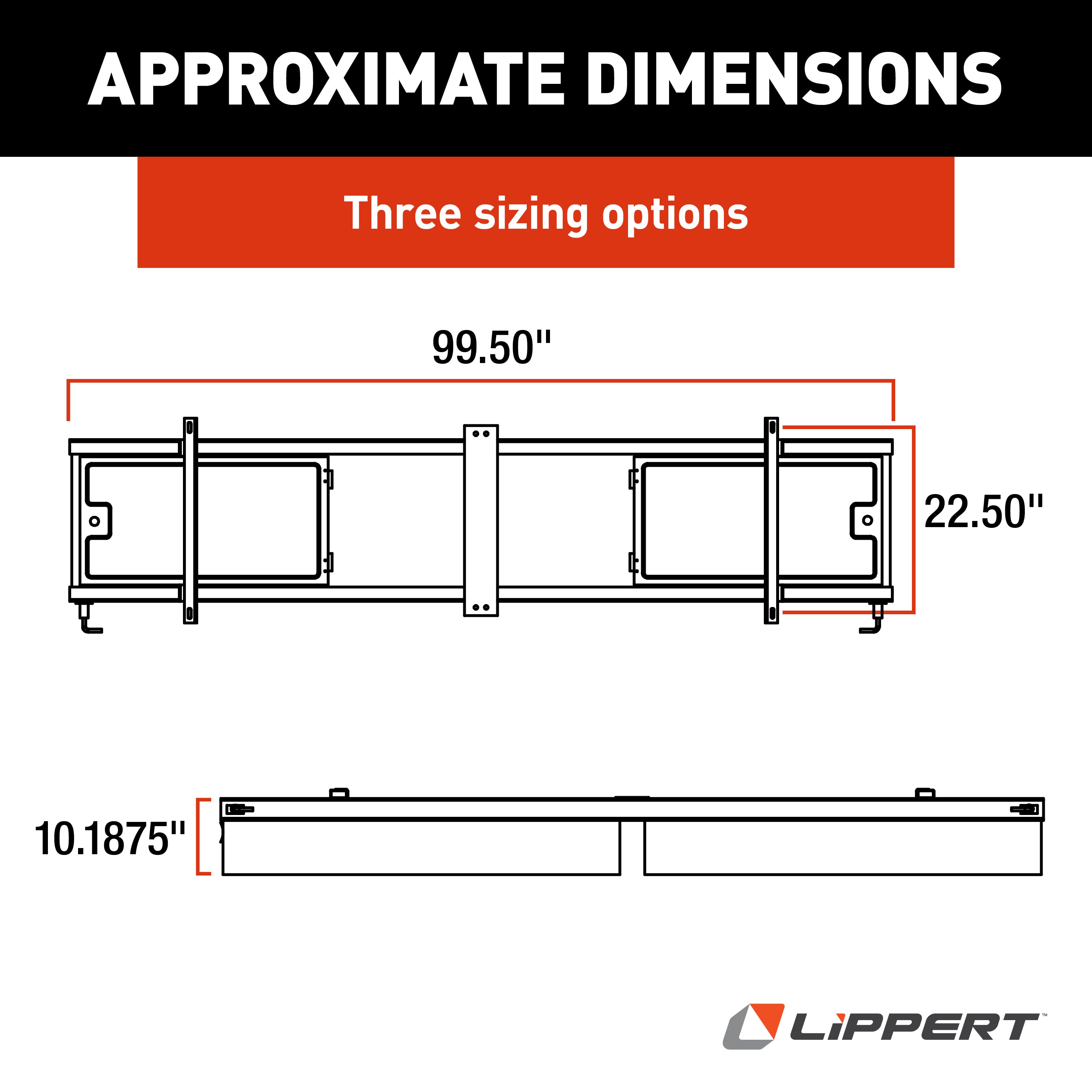

- What are the dimensions of the lippert rv underchassis large double bin storage system? The storage system measures approximately 99.5 inches in length, 22.5 inches in width, and it comes with two detachable molded storage boxes with lids, each measuring 48 inches length, 19 inches width, and 9 inches height.
- How much weight can each storage bin support? Each storage bin is engineered to carry up to 100 pounds of gear.
- Is the storage system resistant to rust and weather conditions? Yes, the steel parts of the storage bins feature a rust-inhibitive coating, making them durable and able to withstand exposure to the elements.
- Does the storage system come with mounting hardware? No, the mounting hardware is not included with the storage system and needs to be purchased separately.
- How do i access the items stored inside the bins? The storage bins use a spring-loaded latch system that allows the compartments to easily slide in and out for quick and effortless access to your stored items.
