Furrion - Chill Cube Non-Ducted Air Distribution Box - 18" x 18" x 4" - Oscillating Vent - R32 - FACT18MA-PS-AM

The Furrion Chill Cube air distribution box revolutionizes RV cooling with its industry-first oscillating vent that projects cool air forward at adjustable 0 to 90-degree angles, delivering faster and more efficient cooling than standard distribution boxes. Designed for modern RV owners who demand premium comfort and intuitive control, this non-ducted ADB combines sleek aesthetics with powerful performance to keep your entire RV comfortable even on the hottest days.

Features & Specifications

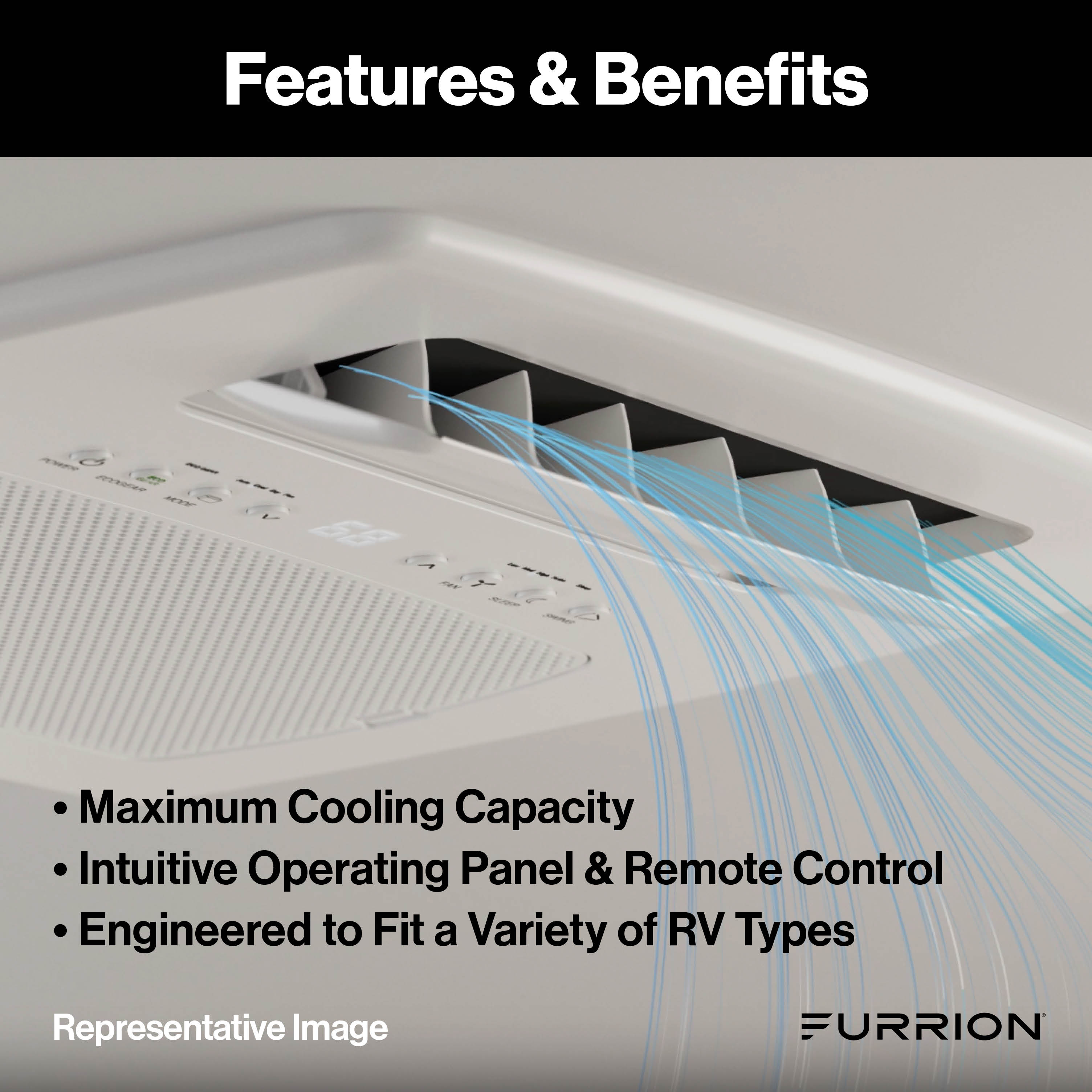

• Industry-First Oscillating Vent: Multi-directional airflow distributes cool air quickly and quietly throughout your RV cabin with adjustable 0-90° angle
• Universal Compatibility: Fits all Furrion Chill RV rooftop air conditioners with 14" roof opening and 3-6" roof thickness

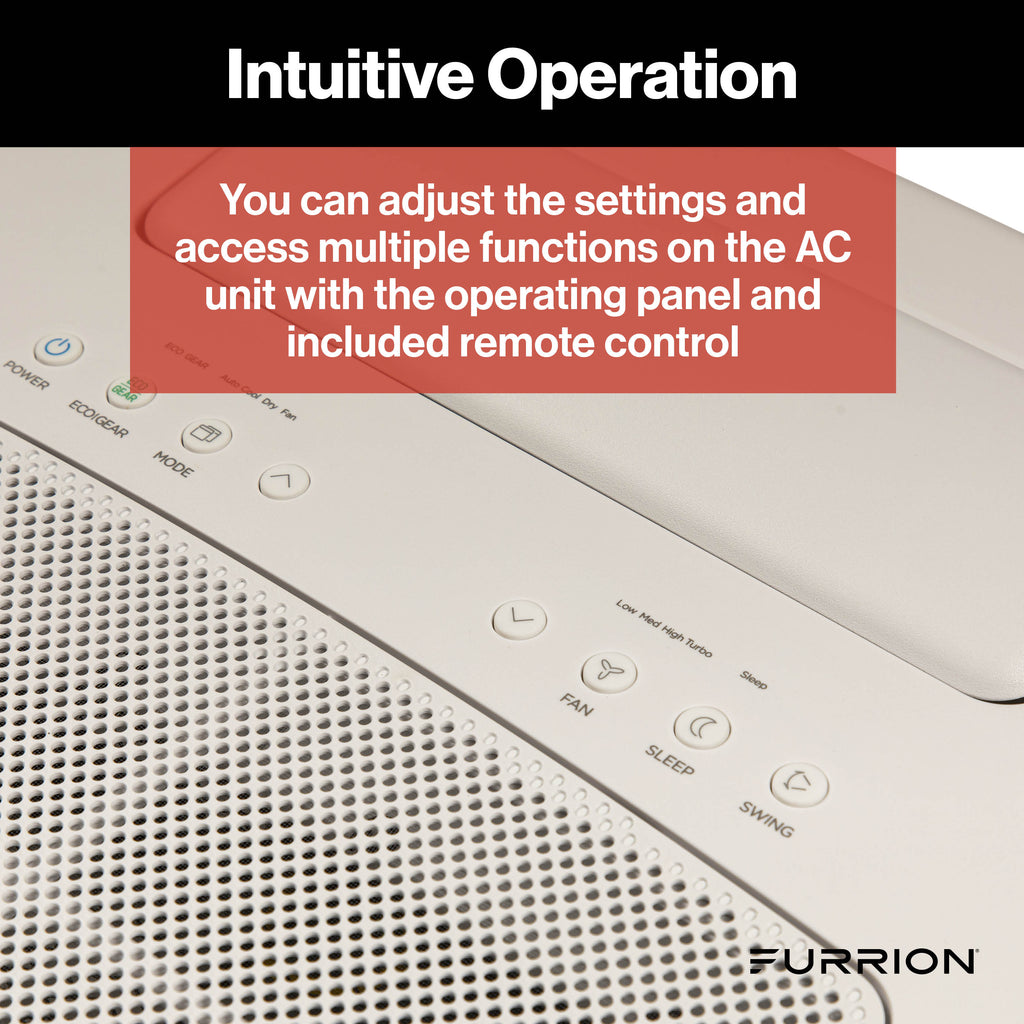

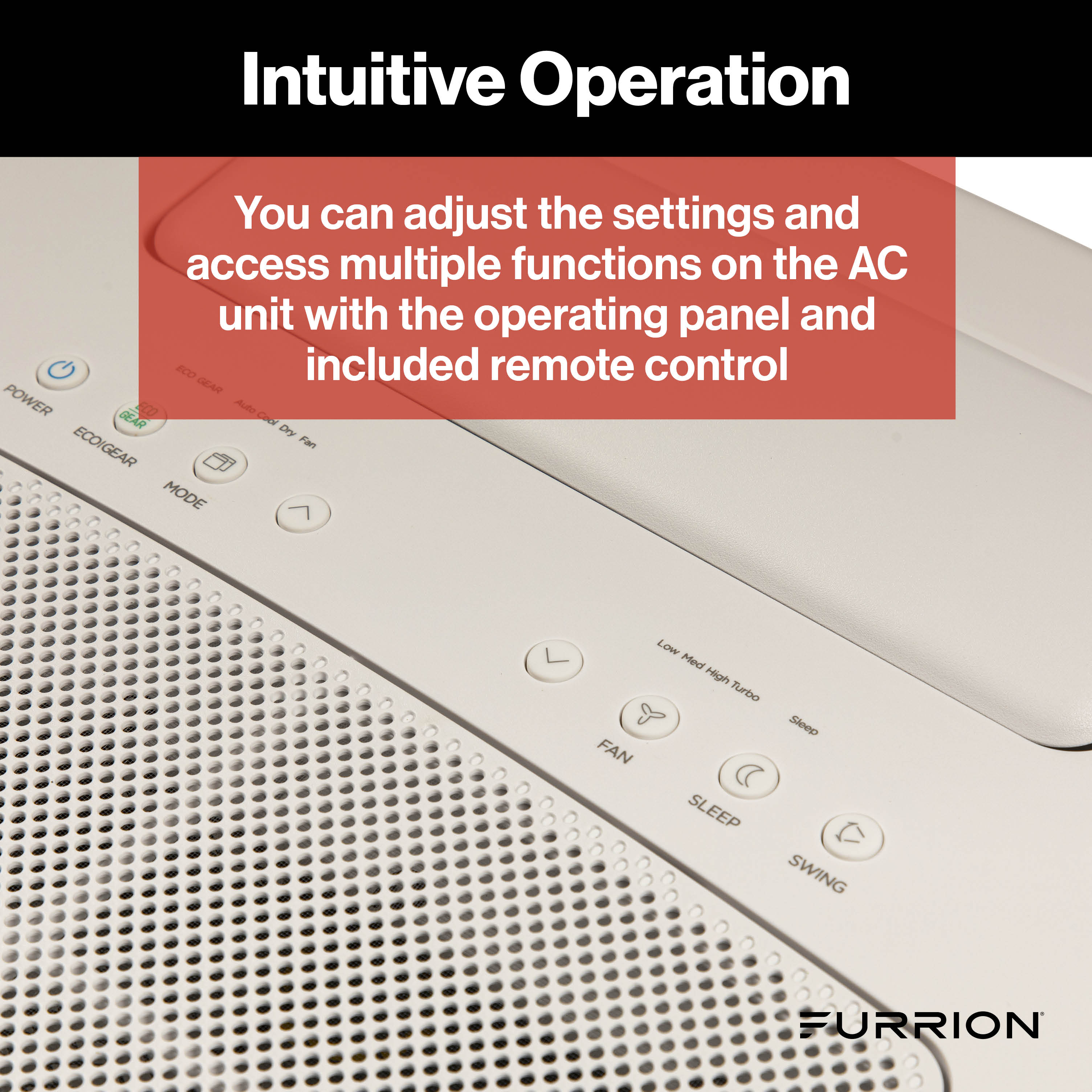

• Dual Control Options: Intuitive operating panel plus included remote control with "Follow Me" temperature sensing up to 26 feet away

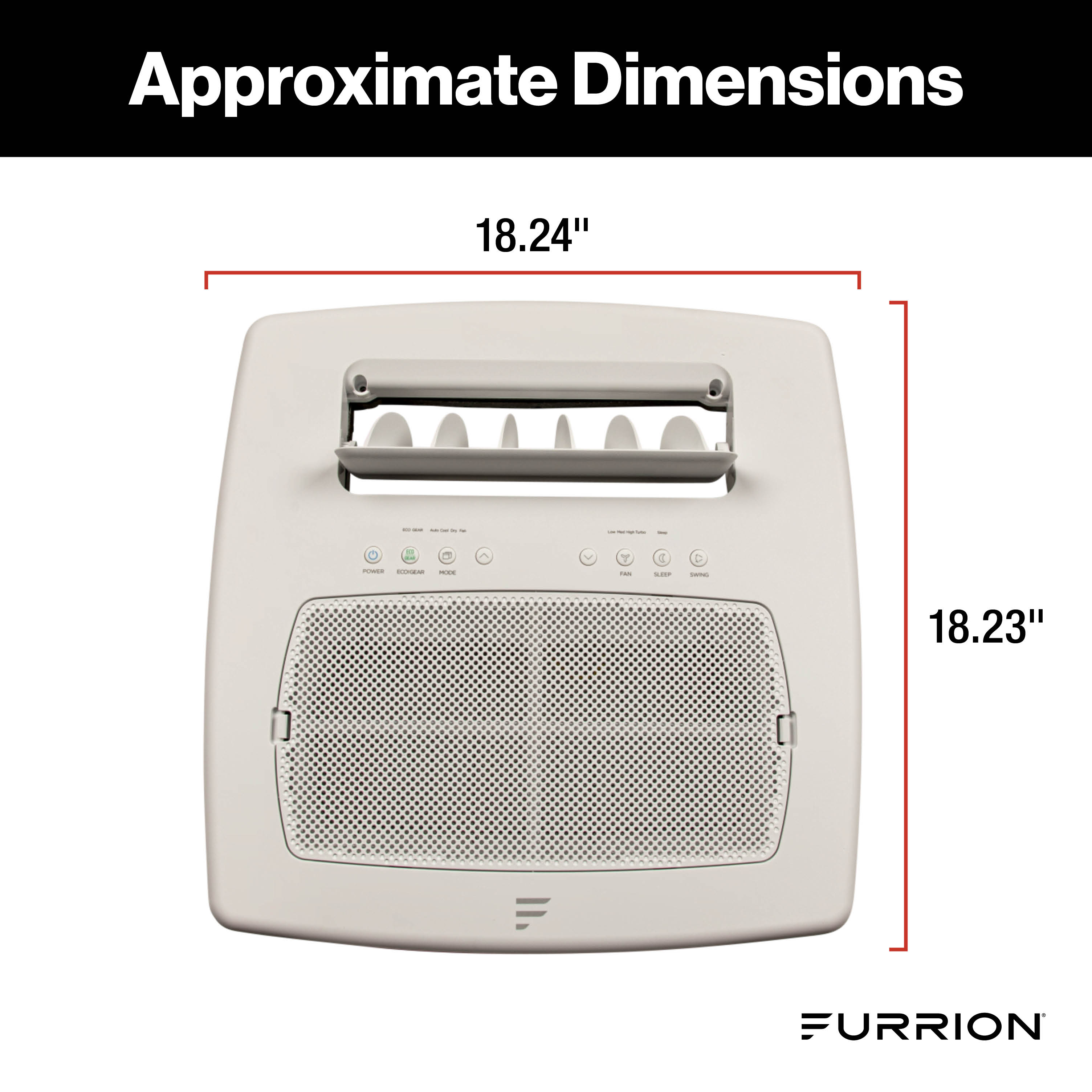

• Compact Dimensions: 18.24" W x 18.23" L x 4.02" H - Low-profile design preserves ceiling space
• Lightweight Construction: Only 6.61 lbs for easy installation
• Easy Maintenance: Detachable filter for quick cleaning without tools
• R32 Refrigerant Compatible: Modern eco-friendly refrigerant system

Why Choose the Furrion Chill Cube Air Distribution Box?

Unlike traditional static air distribution boxes that simply blow cold air straight down, the Furrion Chill Cube features an innovative oscillating vent that actively circulates air throughout your RV for faster, more even cooling. The included remote control offers advanced features like "Follow Me" mode, which uses a built-in temperature sensor to precisely control cooling in areas without a thermostat, ensuring your living space stays exactly as comfortable as you want it. With multiple operating modes including Auto, Eco, Gear, and Turbo, you have complete control over power consumption and cooling performance. The sleek, modern design complements any RV interior while the non-ducted installation makes setup straightforward for both professional installers and DIY enthusiasts.

Compare RV Air Distribution Boxes

Choosing the right air distribution box depends on your RV's roof opening size, desired features, and compatibility with your AC system. Here's how the Furrion Chill Cube compares to other popular options:

💡 Pro Tip: The Furrion Chill Cube's oscillating vent and compact size make it ideal for smaller RVs and travel trailers where efficient air circulation is critical, while larger units like the Dometic models work better in spacious Class A motorhomes.

Technical Specifications

• Part Number: FACT18MA-PS-AM
• SKU: 2024040311
• Dimensions: 18.24" W x 18.23" L x 4.02" H
• Weight: 6.61 lbs (Physical), 8.05 lbs (Dimensional)
• Compatible Roof Opening: 14 inches
• Compatible Roof Thickness: 3 to 6 inches
• System Type: Non-ducted
• Refrigerant: R32
• Color: White
• Control Options: Operating panel + remote control
• Operating Modes: Auto, Eco, Gear (75%/50% power limit), Turbo
• Fan Speeds: Three speeds plus Turbo boost
• Remote Range: Up to 26 feet (Follow Me mode)
• Filter Type: Detachable for easy cleaning

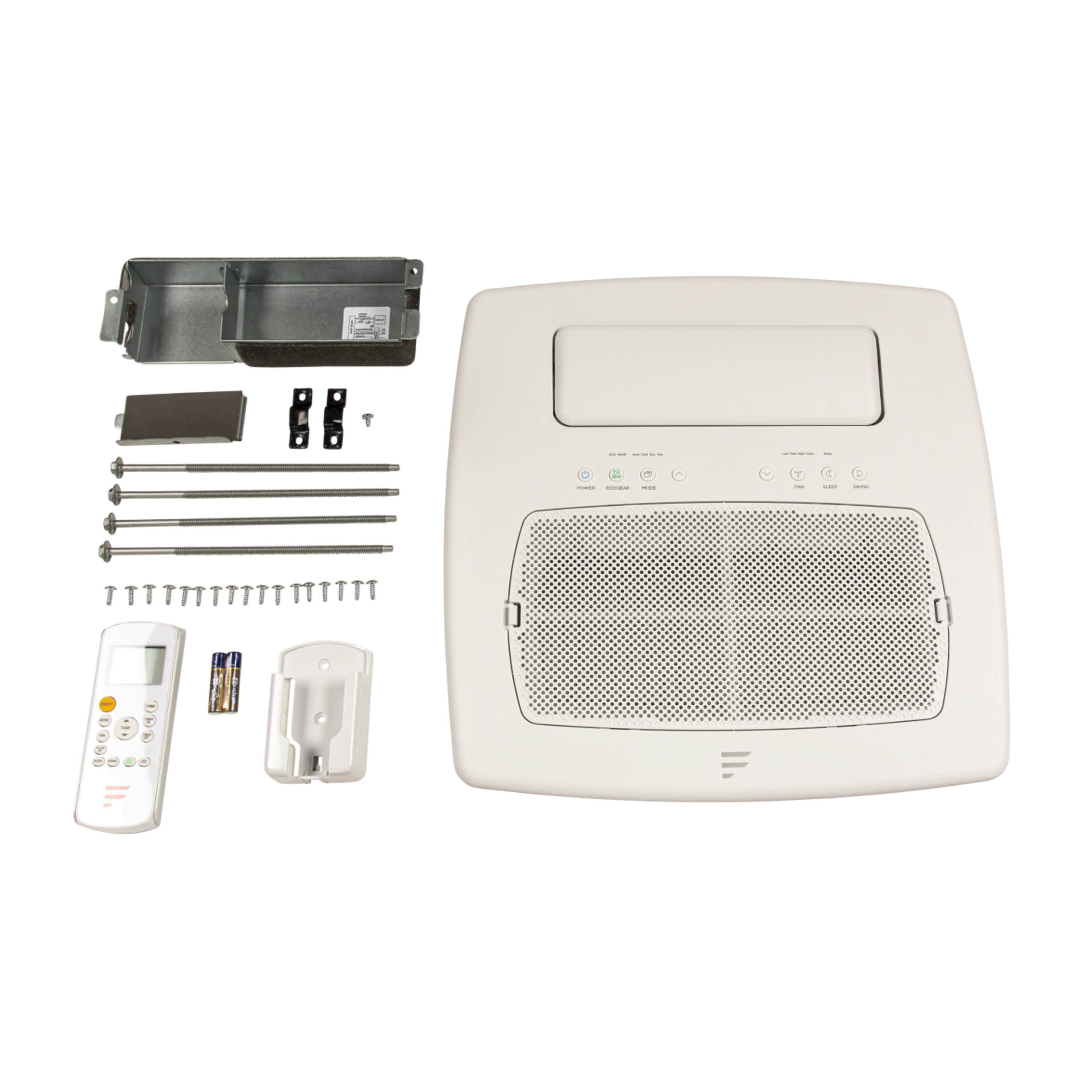

What's Included

• Furrion Chill Cube Air Distribution Box (FACT18MA-PS-AM)
• Remote Control with Follow Me temperature sensor
• Detachable Air Filter
• Installation Hardware
• Owner's Manual
• Furrion Limited Warranty

Advanced Operating Modes Explained

Auto Mode

Automatically adjusts fan speed and cooling output to maintain your desired temperature with maximum power efficiency. The system intelligently balances comfort and energy consumption.

Eco Mode

Minimizes power consumption while still providing cooling. Perfect for boondocking or when running on battery/solar power.

Gear Mode

Allows you to set a maximum power consumption limit of either 75% or 50%, giving you precise control over electrical usage without sacrificing all cooling capability.

Turbo Mode

Provides maximum airflow boost for rapid cooling when you first enter a hot RV or during extreme heat conditions.

Follow Me Mode (Remote Only)

The remote's built-in temperature sensor sends real-time temperature data to the AC unit, allowing it to cool based on the temperature where you actually are (up to 26 feet away) rather than just at the ceiling-mounted unit.

Compatible Models & Alternatives

This air distribution box is specifically designed for Furrion Chill RV rooftop air conditioners using R32 refrigerant. If you're looking for related Furrion components, consider the Furrion Standard Air Distribution Box for manual control applications, or explore our complete selection of Furrion air conditioning components for replacement parts and accessories.

Frequently Asked Questions

How do I install the Furrion Chill Cube air distribution box?

Installation is straightforward for non-ducted systems. The unit mounts directly to your Furrion Chill rooftop AC through a 14" roof opening. Ensure your roof thickness is between 3-6 inches, connect the wiring harness, secure the mounting hardware, and attach the detachable filter. Most installations take 1-2 hours. Professional installation is recommended if you're not comfortable working with RV electrical systems.

Is this compatible with my existing Furrion air conditioner?

The Chill Cube (FACT18MA-PS-AM) is compatible with all Furrion Chill RV rooftop air conditioners that use R32 refrigerant and have a 14" roof opening. Verify your AC model uses R32 refrigerant before purchasing. It is NOT compatible with older Furrion models using different refrigerants or non-Furrion AC brands.

What's the difference between this and the standard Furrion air distribution box?

The Chill Cube features an industry-first oscillating vent that actively directs airflow at 0-90° angles, while the standard box has fixed two-way airflow. The Chill Cube also includes a remote control with Follow Me temperature sensing, multiple operating modes (Auto, Eco, Gear, Turbo), and is slightly larger at 18.24" x 18.23" compared to the standard 17.25" x 17.25" box.

Can I use this with a ducted AC system?

No, the Furrion Chill Cube (FACT18MA-PS-AM) is designed specifically for non-ducted applications. If you need ducted compatibility, consider the Furrion Standard Air Distribution Box (FACT11CA-PS), which supports both ducted and non-ducted installations.

How do I clean the filter?

The detachable filter removes easily without tools. Simply pull the filter out, rinse with warm water, allow to air dry completely, and reinstall. Clean the filter every 2-4 weeks during heavy use, or monthly during normal operation, to maintain optimal airflow and cooling efficiency.

What is the Follow Me mode and how does it work?

Follow Me mode uses a temperature sensor built into the remote control to measure the temperature where you're actually located (up to 26 feet away from the AC unit). The remote sends this temperature data to the AC, which then cools based on your location rather than the ceiling-mounted thermostat. This ensures more accurate temperature control in your living space.
