Description

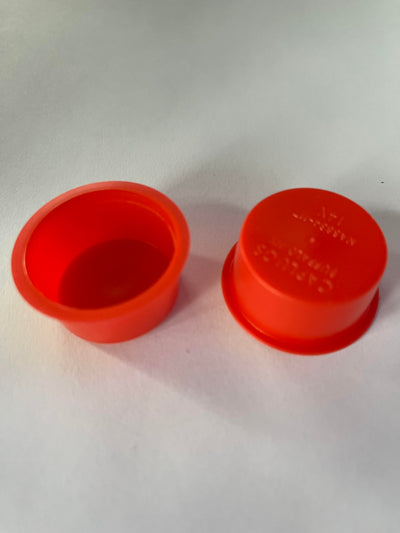

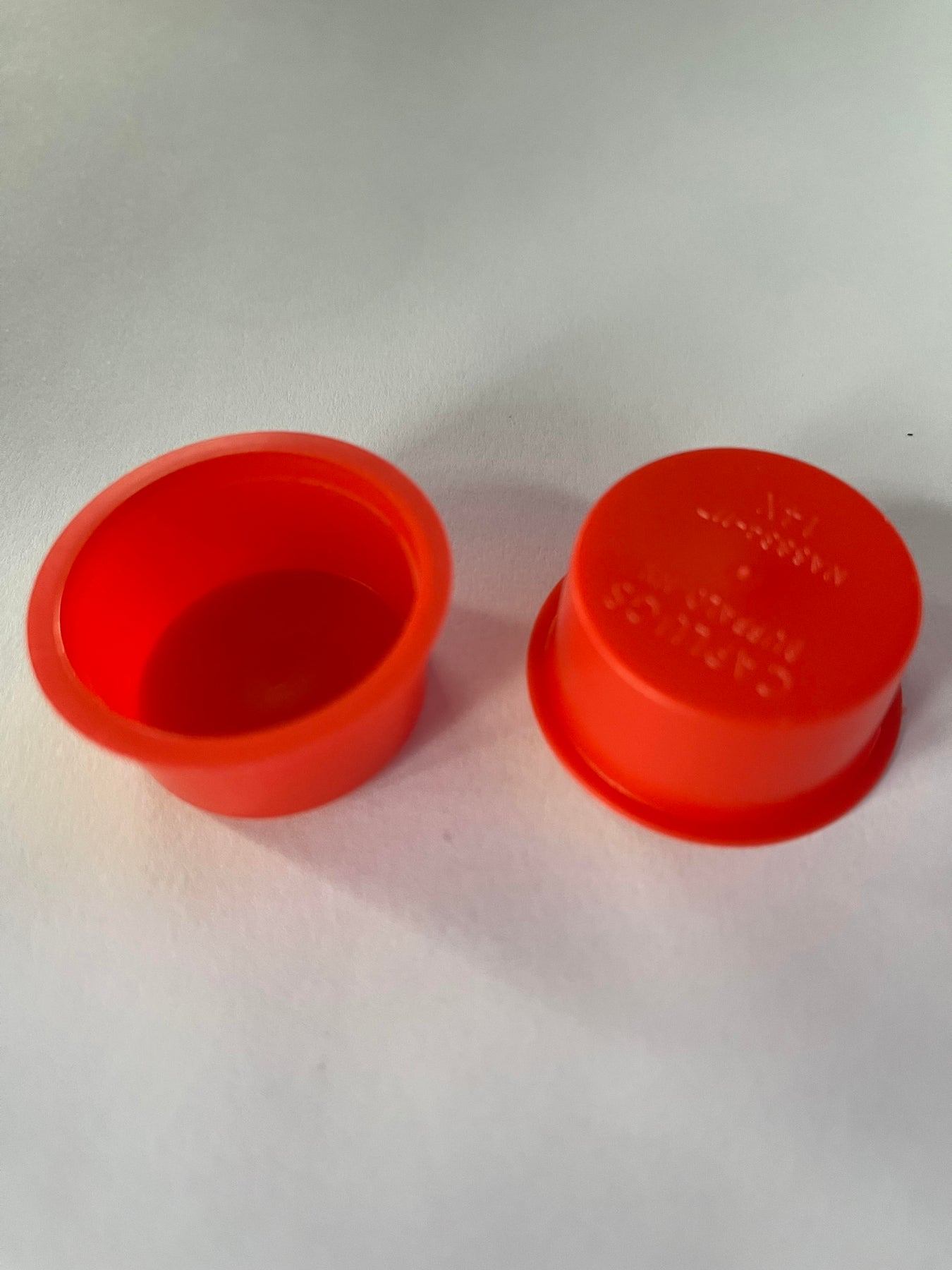

Need a cap or a plug? This tapered cap/plug will keep your tank clean from dirt and debris. It is easy to install and remove. May be used for MIL Spec, SAE-type fittings, hydraulic and threaded or non-threaded fittings.
Material: Low-density polyethylene or Flex Temp (thermoplastic rubber)
Service Temperature: LDPE: -94 - 175° F (-70 - 79° C) | Flex Temp: 0 - 300° F (-18 - 148° C)
Standard Color: Red
Applicable Specs: NAS 834
Sold in Each

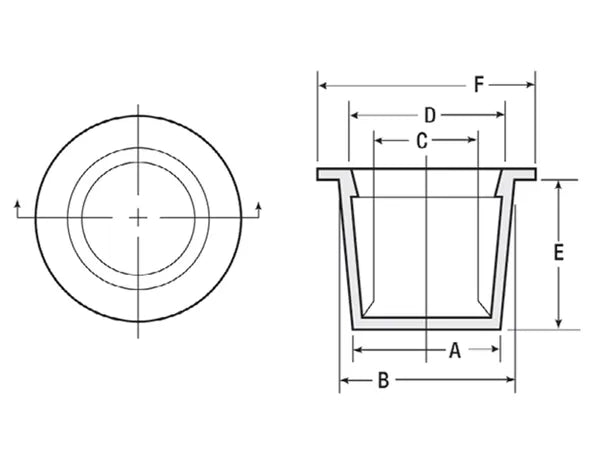

Dimensions (see drawing)
Dim A (in): 1.175
Dim B (in): 1.284
Dim C (in): 1.113
Dim D (in): 1.222
Dim E (in): 0.630
Dim F (in): 1.440
