Premium 23 Gallon RV Holding Tank - Professional Grade Water Storage
Upgrade your RV's waste management system with this premium 23-gallon holding tank from Elkhart Plastics. Engineered for reliable performance and built to withstand the demands of RV life.
🔧 Key Benefits & Features
- Large 23-gallon capacity - Extended use between dump station visits
- Durable construction - Made by trusted Elkhart Plastics/Ameri-Kart
- Versatile design - Works for both gray water and black water applications
- Professional grade - Built to RV industry standards for long-lasting performance
- Easy installation - Standard fittings and mounting options
📏 Technical Specifications
- Capacity: 23 gallons
- Dimensions: 56" L x 16.25" W x 8.5" H
- Weight: 90 lbs
- Part Numbers: EPI 3366, H1236
- Material: High-grade plastic construction
- Origin: Made in USA
🚐 Perfect For These RV Applications
- Travel trailers and fifth wheels
- Motorhomes requiring additional holding capacity
- RV renovations and upgrades
- Replacement for damaged or worn tanks
- Custom RV builds and conversions
✅ Why Choose Elkhart Plastics?
Elkhart Plastics is a leading manufacturer of RV components with decades of experience. Their holding tanks are known for:
- Superior durability and leak resistance
- Precise manufacturing tolerances
- Industry-standard fittings and connections
- Proven performance in thousands of RVs
🛠️ Installation & Compatibility
This holding tank features standard RV fittings and is compatible with most RV plumbing systems. The compact 8.5" height makes it ideal for installations with limited clearance while still providing substantial 23-gallon capacity.
Ready to upgrade your RV's holding capacity? Order your Elkhart Plastics 23-gallon holding tank today and enjoy reliable waste management on all your adventures!
| Material | Black polyethylene |
|---|---|
| Width (inches) | 16.25 |
| Height (inches) | 8.5 |
| Length (inches) | 56 |
| Weight (pounds) | 33 |
| Capacity (gallons) | 23 |
| Wall thickness (inches) | 0.18 |
| Outlet diameter (inches) | 3 |
- What is the capacity of the 23 gallon rv holding tank? The holding tank has a capacity of 23 gallons.

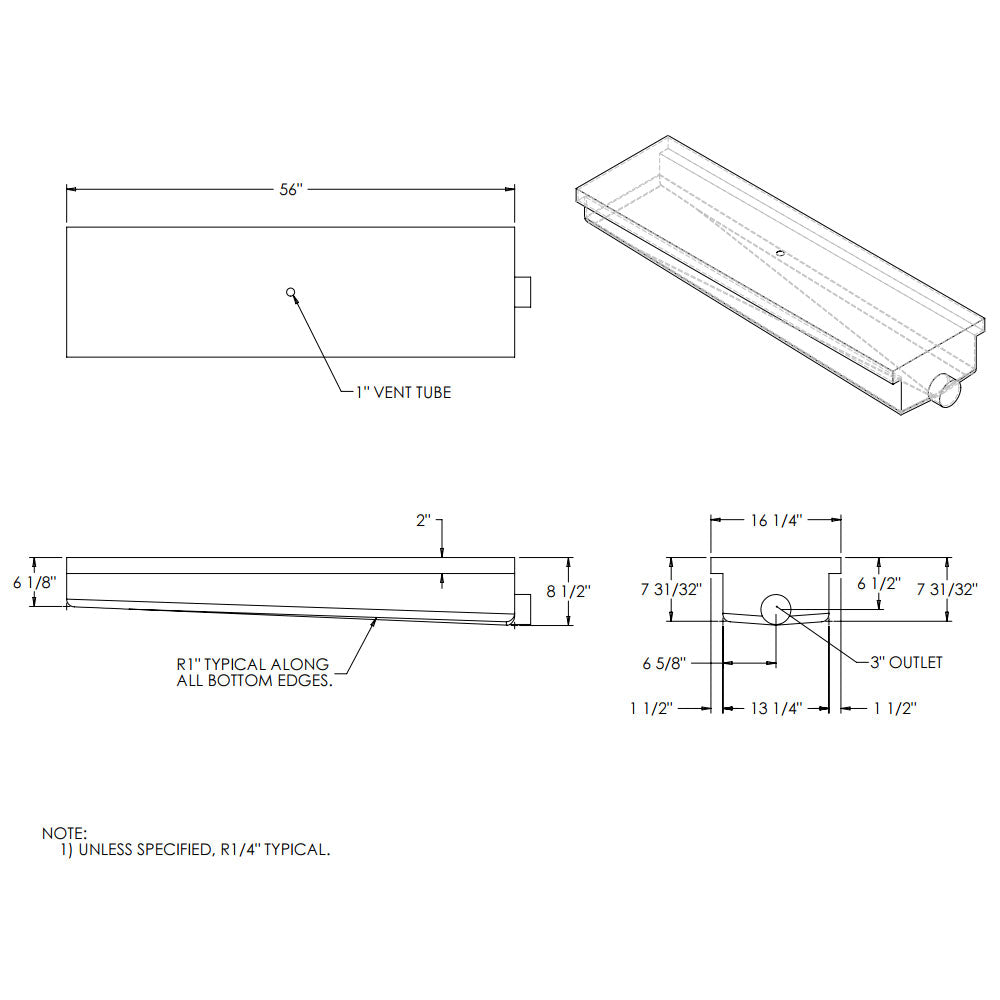

- What are the dimensions of this rv holding tank? The tank measures 56 inches in length, 16 1/4 inches in width, and 8 1/2 inches in height.
- Is this holding tank ready to use with fittings installed? No, this is a blank tank with no fittings. Fittings can be added upon request and quote.
- What material is the holding tank made from? The tank is made from black polyethylene with a wall thickness of 0.180 inches.

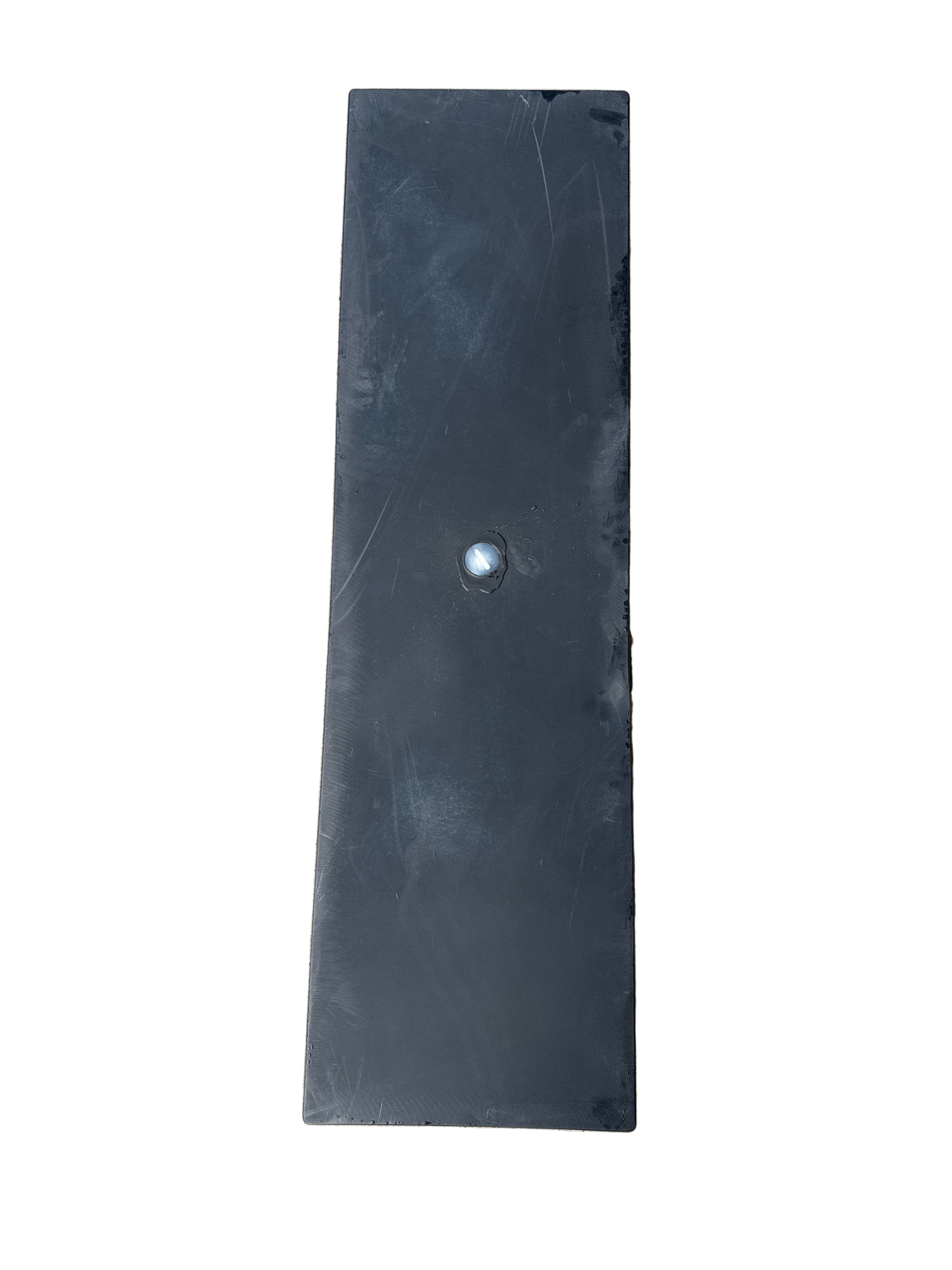

- What is the purpose of the sealed hole on top of the tank? The sealed hole on top is a venting hole used during the manufacturing process and has no functional use for the end-user.
Factory-Fresh OEM Parts — the same brands installed in new RVs straight from Elkhart. Genuine, name-brand components made to order — never generic, never outdated. Sourced directly from the original RV manufacturers for perfect fit and factory-level quality.
