✓ ElkhartRVParts.com - The Only Authorized Place for Covenant Electric Fireplaces
✓ 100% Verified Authentic OEM Grade Part
Covenant 26" Electric RV Fireplace - Premium Heating & Ambiance for Your RV
Transform your RV or small space into a cozy retreat with the Covenant 26" Electric Insert Flush Mount Fireplace Flat Front with Crystals (LFP26-CT WD914-26CT). This sleek, modern fireplace combines stunning visual appeal with powerful heating performance, making it the perfect addition to any recreational vehicle, cabin, or compact living area.
Why Choose the Covenant 26" Electric Fireplace?
- Authentic OEM Replacement: Direct from Covenant, ensuring perfect fit and compatibility with your RV's existing cutout
- Powerful 1500W Heating: Efficiently warms your space with 120V AC operation and intelligent auto-shutoff for safety
- 6 Customizable Flame Settings: Adjust flame color and intensity to match your mood or decor
- Crystal Accents: Sparkling crystals create a mesmerizing, lifelike fire effect on the flat front design

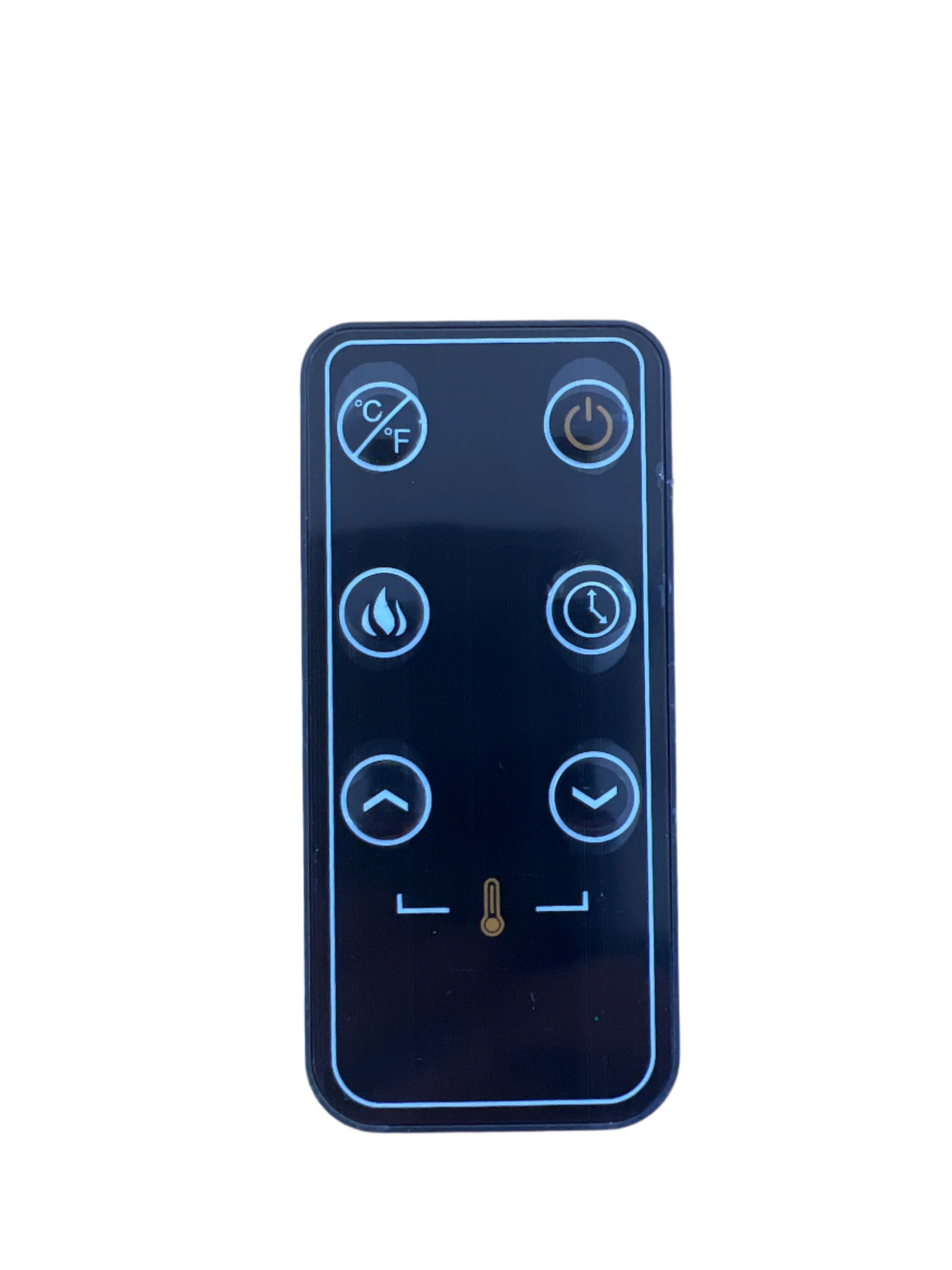

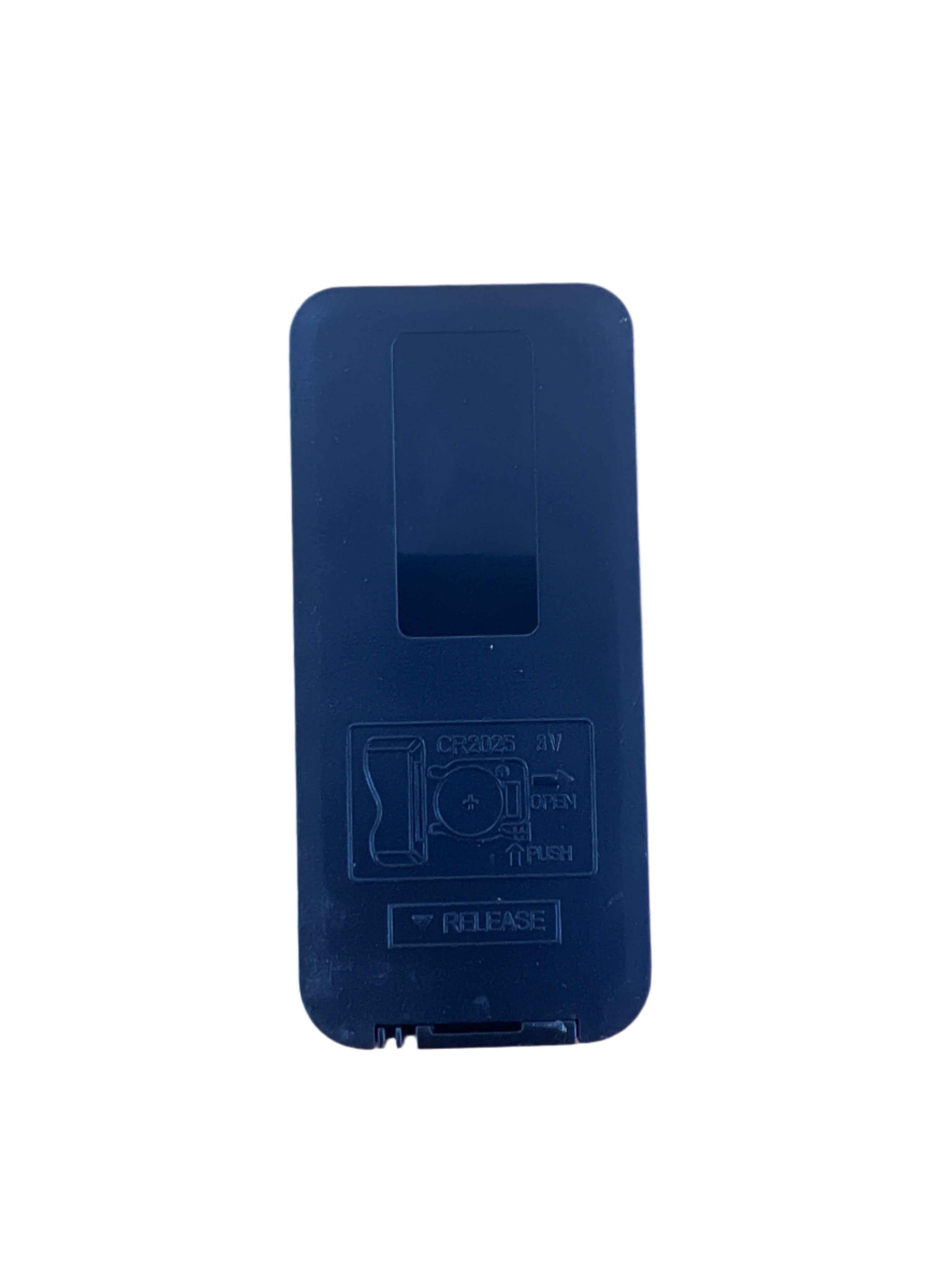

- Remote Control Included: Operate all settings conveniently from anywhere in your RV
- Flush Mount Design: Professional installation with clean, modern appearance
- Safe & Low Maintenance: No real flames, smoke, or ash - just beautiful ambiance and reliable warmth
Technical Specifications
- Model Numbers: LFP26-CT, WD914-26CT
- Heating Power: 1500W, 120V AC, 60Hz

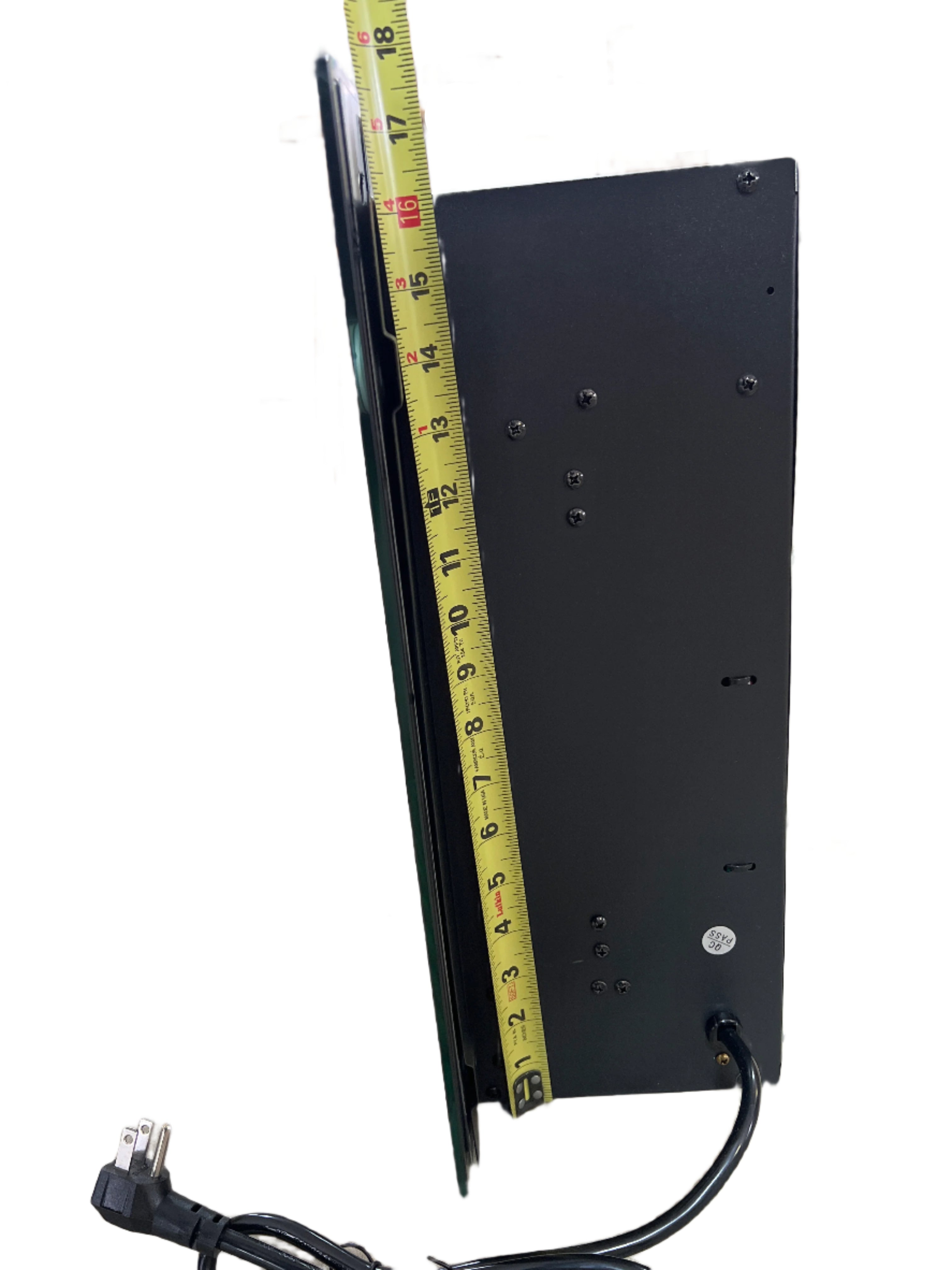

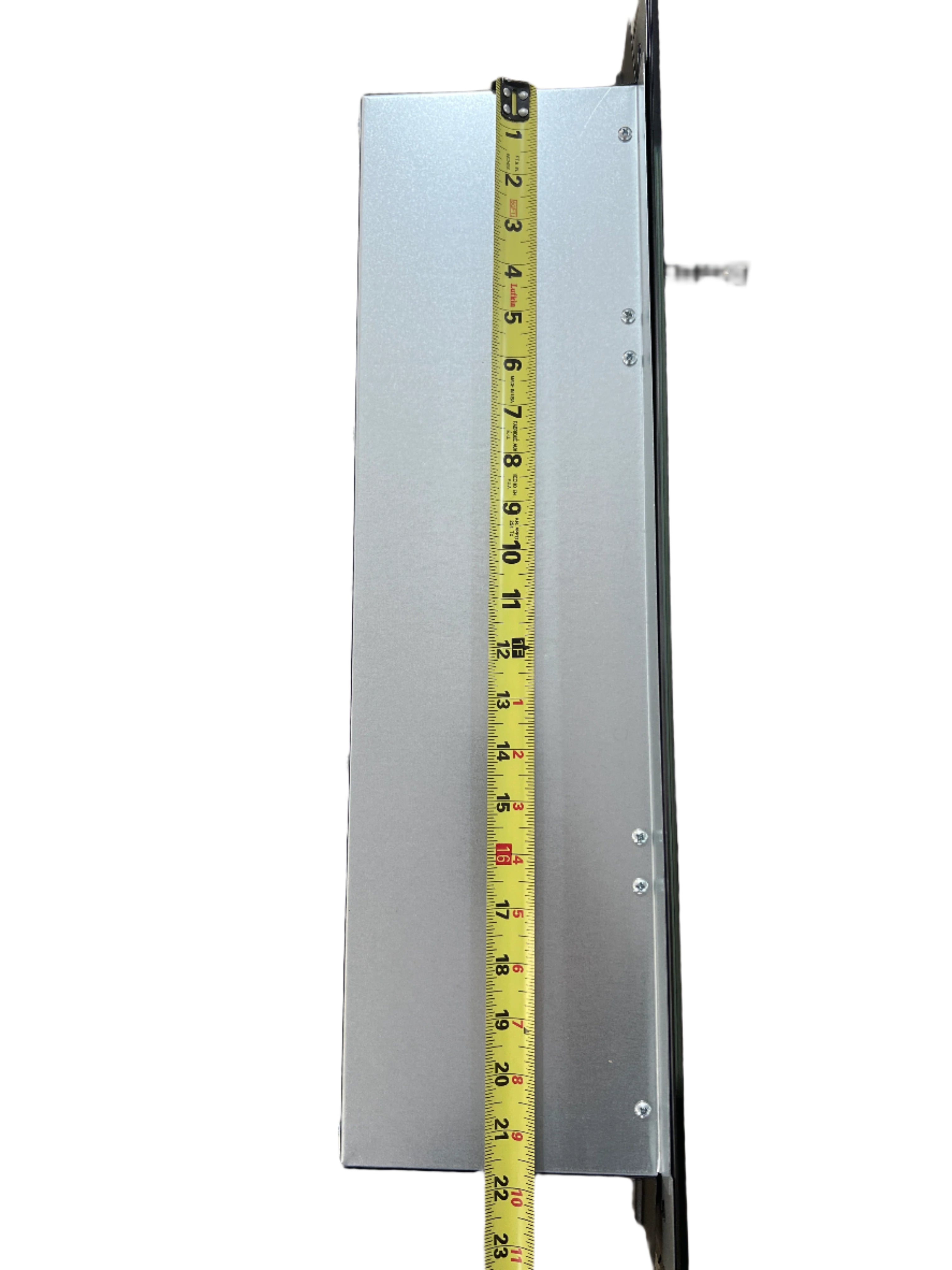

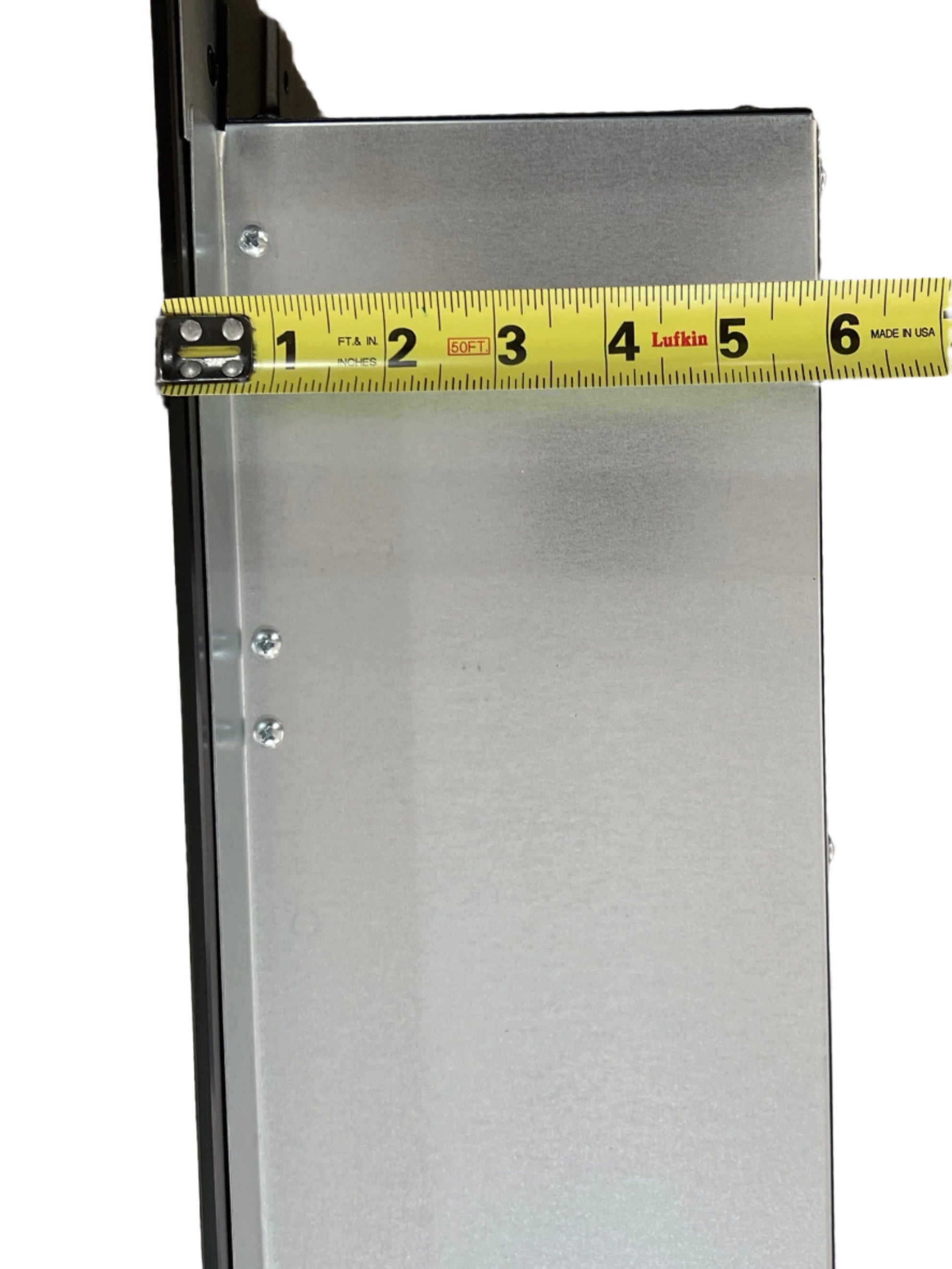

- Overall Dimensions: 26"W × 6.2"D × 17.7"H
- Required Wall Cutout: 22.75"W × 6.313"D × 17.125"H
- Clearance Required: Minimum 0.5" spacing from rear of unit to wall
- Weight: 23.4 lbs
- Flame Options: 6 customizable variations with adjustable color and intensity
- Control Options: Front panel controls + remote control
- Safety Features: Auto-shutoff when desired temperature is reached
Perfect For
This compact electric fireplace is ideal for RVs, travel trailers, fifth wheels, campers, cabins, tiny homes, small apartments, or any space needing a stylish, efficient heating solution. The Covenant 26" model is specifically designed for smaller RV living areas where space is at a premium but comfort is essential.
Installation & Operation
Installation is straightforward with the flush-mount design. The fireplace fits into a standard RV fireplace cutout (22.75"W × 6.313"D × 17.125"H) and can be controlled via the intuitive front panel or the included remote control. The adjustable temperature settings and auto-shutoff function ensure safe, efficient operation throughout your travels.
Compatible Models & Alternatives
Looking for a different size? The Covenant W914 series is available in multiple widths to fit various RV configurations. Check out our 30" model, 36" model, 40" model, or 48" model for larger spaces.
Covenant Electric Fireplace Size Comparison
| Model | Width | Heating Power | Part Numbers | Best For | View Details |
|---|---|---|---|---|---|
| 26" Fireplace | 26 inches | 1500W | LFP26-CT, WD914-26CT | Small RVs, compact spaces | Current Product |
| 30" Fireplace | 30 inches | 1500W | LFP30-CT, W914-30CT | Mid-size RVs, travel trailers | View 30" Model |
| 36" Fireplace | 36 inches | 1500W | W914-36CT, LFP36-CT | Larger RVs, fifth wheels | View 36" Model |
| 40" Fireplace | 40 inches | 1500W | W914-40CT, LFP40-CT | Large RVs, luxury coaches | View 40" Model |
| 48" Fireplace | 48 inches | 1500W | LFP48-CT, WD914-48FT | Extra-large RVs, motorhomes | View 48" Model |
💡 Sizing Tip: Measure your existing fireplace cutout width before ordering. All models in the W914 series feature the same 1500W heating power and 6 flame settings - choose based on your available space and aesthetic preference.
Replacement Parts & Accessories
Need replacement parts for your Covenant fireplace? We stock genuine OEM components including touchscreen control boards, blower motors with heating elements, universal remote controls, and replacement glass fronts for the 26" model.
Frequently Asked Questions
What are the dimensions of the Covenant 26" Electric RV Fireplace?
The overall dimensions are 26"W × 6.2"D × 17.7"H. The required wall cutout for flush mount installation is 22.75"W × 6.313"D × 17.125"H.
How many flame options does this electric fireplace have?
This fireplace offers six unique flame variations with customizable color and intensity to match your mood or decor.
Is the Covenant 26" Electric RV Fireplace energy efficient and safe to use?
Yes, it features a 1500W heating element with an intelligent auto-shutoff function that stops heating once the desired temperature is reached, ensuring energy efficiency and safety.
Can I control the fireplace remotely?
Yes, the fireplace comes with a remote control allowing you to operate all settings conveniently from anywhere in the room.
Is this fireplace suitable for small spaces like RVs or cabins?
Yes, it is specifically designed for RVs, cabins, small apartments, or any compact living area, offering a stylish and efficient heating solution.
Order Your Covenant 26" Electric RV Fireplace Today
Add warmth, ambiance, and value to your RV with this authentic Covenant electric fireplace. With verified OEM quality, powerful heating, and stunning visual effects, it's the perfect upgrade for your mobile living space. Questions? Our AI Live Chat can help you verify compatibility and answer any technical questions about installation or operation.
Click HERE for the Instruction Manual
Need Visual Help?
Watch these quick repair guides to help you troubleshoot and fix common fireplace issues:
Will Not Turn On Or Off
Q: won't shut off when reaching temp
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Suggestions: 1) To disconnect the main power supply for about 15 minutes, and restart it after Overheat protection cools off. 2) The ambient temperature is too low, preheat first, the PC board is set to start at low temperatures: 23°F to 32°F turn on and wait 30 seconds before turning on the heat -5°F to 5°F turn on and waith 2 mins before turning on the heat.
Q: won't stay on. Clicks on and off very fast and remains off.
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: will not turn on
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: will turn on and then shuts off after a few seconds
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: was working and then shut off and wouldn't turn back on.
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: will not stay on
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: works intermittently
Reason: The set temperature was too low, or reached at critical point.
Solution 1: Adjust high temperature
Q: will turn on but none of the functions will work.
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: will not shut off with button or remote. Have to turn off breaker
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: smells hot
Reason: The residual oil on the heating element wire will have a smell on the first operation.
Solution 1: It will clear off after the first few minutes
Fan And Heat Element
Q: Heating element turning red and shutting off
Reason: The Fan is not turning
Solution 1:: Replace the fan heating component
Q: Noisy fan
Reason: A tie cable or wire possibly touching the fan wheel
Solution 1:: Open the top panel and check if the wire is touching the fan wheel , move the wire that is touching the fan wheel.
Q: Heating element and fan will not turn off
Reason: PC board failure
Solution 1:: Replace the PC board (Touchscreen / Physical Button)
Q: No heat or fan
Reason: PC board failure
Solution 1:: Replace the PC board (Touchscreen / Physical Button)
Flames
Q: Clicking noise when flame is turning.
Solution 1:: Remove the back panel and check the flame film to see if it's hitting the side brackets
Solution 2:: Replace the Synchronous motor
Q: Flames not rotating
Solution 1:: Replace the fan motor
Solution 2:: Replace the control board
Q: noisy flame motor
Solution 1:: Check the flicker and remove other objects
Solution 2:: Replace the Synchronous motor
Led Lights
Q: LED out on half
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: LED light not working
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: LEDs are intermittent
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: Left side or right side of LED under logs not lighting up
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Lcd Display
Q: LCD display not working
Solution 1: Check for loose connector on the PC board and display
Solution 2: Replace the display
Solution 2:: Replace PC Board
Q: LCD display hanging
Solution 1: Replace springs that came off of the bracket. Should be laying the bottom of unit
| Depth (inches) | 6.2 |
|---|---|
| Frequency (hz) | 60 |
| Width (inches) | 26 |
| Height (inches) | 17.7 |
| Voltage (volts) | 120 |
| Weight (pounds) | 22 |
| Flame variations | 6 customizable flame options with adjustable color and intensity |
| Material accents | Crystals on flat front design |
| Heating power (watts) | 1500 |
| Wall cutout depth (inches) | 6.313 |
| Wall cutout width (inches) | 22.75 |
| Dimensional weight (pounds) | 34 |
| Wall cutout height (inches) | 17.125 |
- What are the dimensions of the covenant 26" electric rv fireplace? The overall dimensions of the fireplace are 26 inches wide, 6.2 inches deep, and 17.7 inches high. The required wall cutout for flush mount installation is 22.75 inches wide, 6.313 inches deep, and 17.125 inches high.
- How many flame options does this electric fireplace have? This fireplace offers six unique flame variations with customizable color and intensity to match your mood or decor.
- Is the covenant 26" electric rv fireplace energy efficient and safe to use? Yes, it features a 1500W heating element with an intelligent auto-shutoff function that stops heating once the desired temperature is reached, ensuring energy efficiency and safety.
- Can i control the fireplace remotely? Yes, the fireplace comes with a remote control allowing you to operate all settings conveniently from anywhere in the room.
- Is this fireplace suitable for small spaces like rvs or cabins? Yes, it is specifically designed for RVs, cabins, small apartments, or any compact living area, offering a stylish and efficient heating solution.
