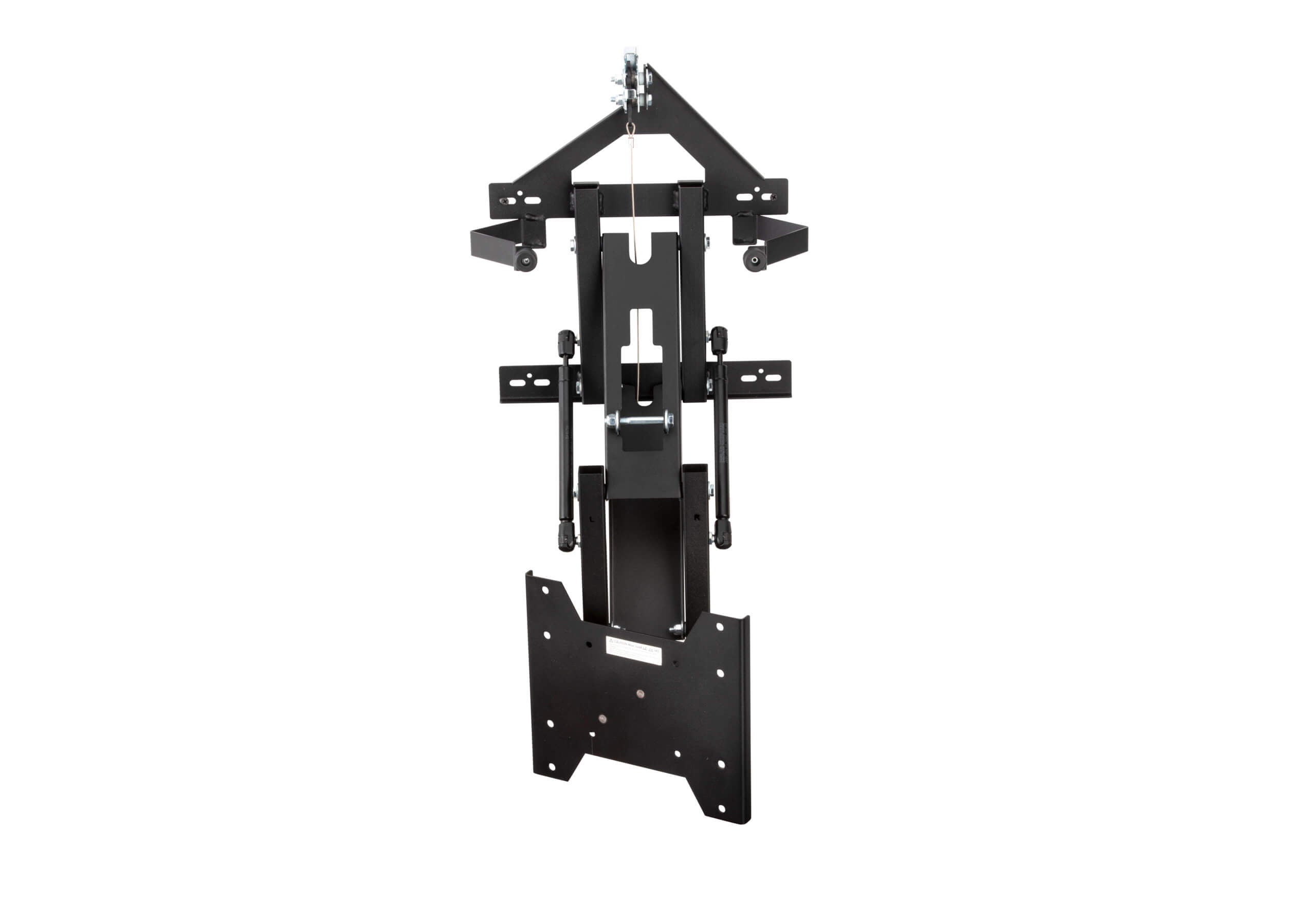

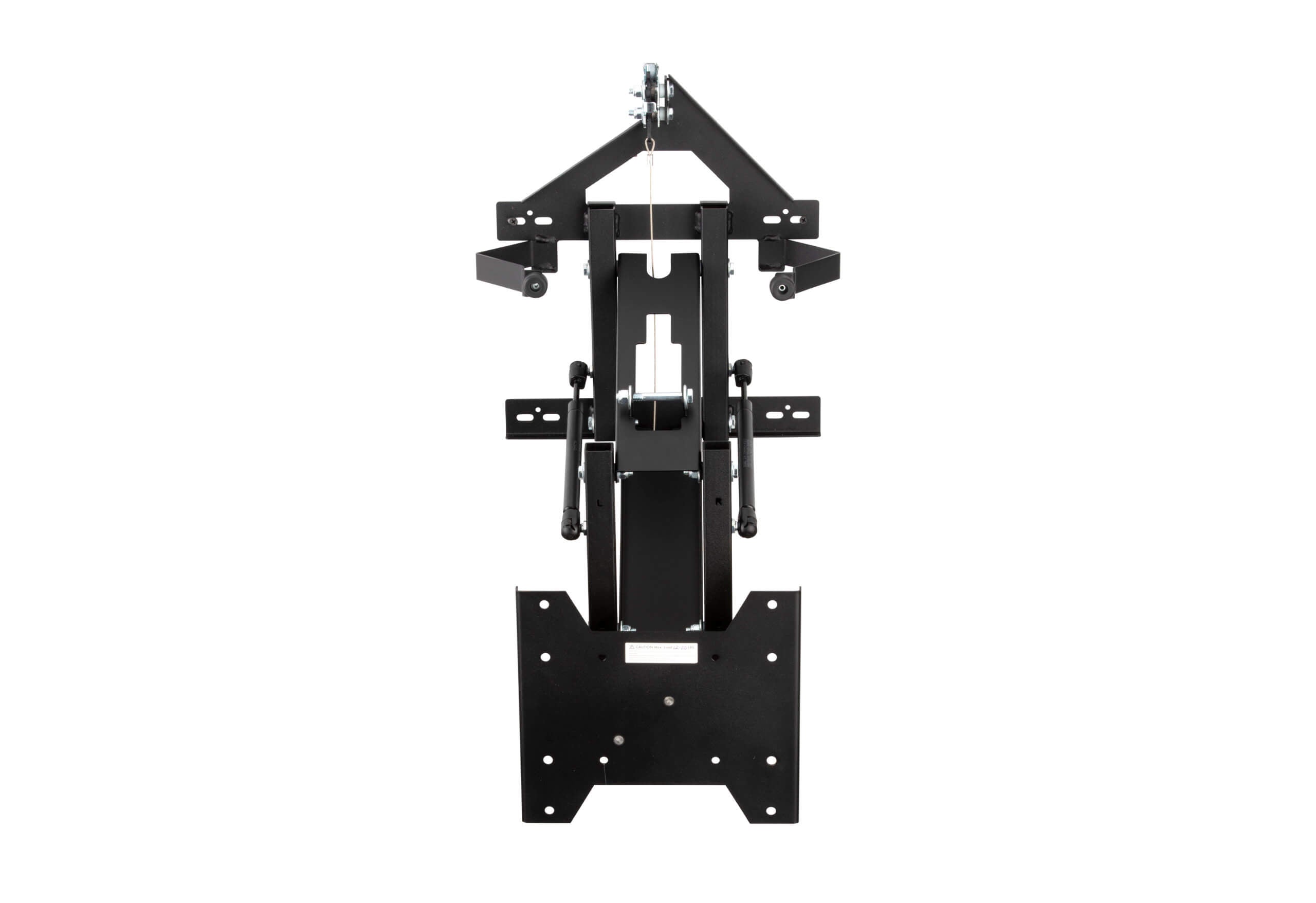

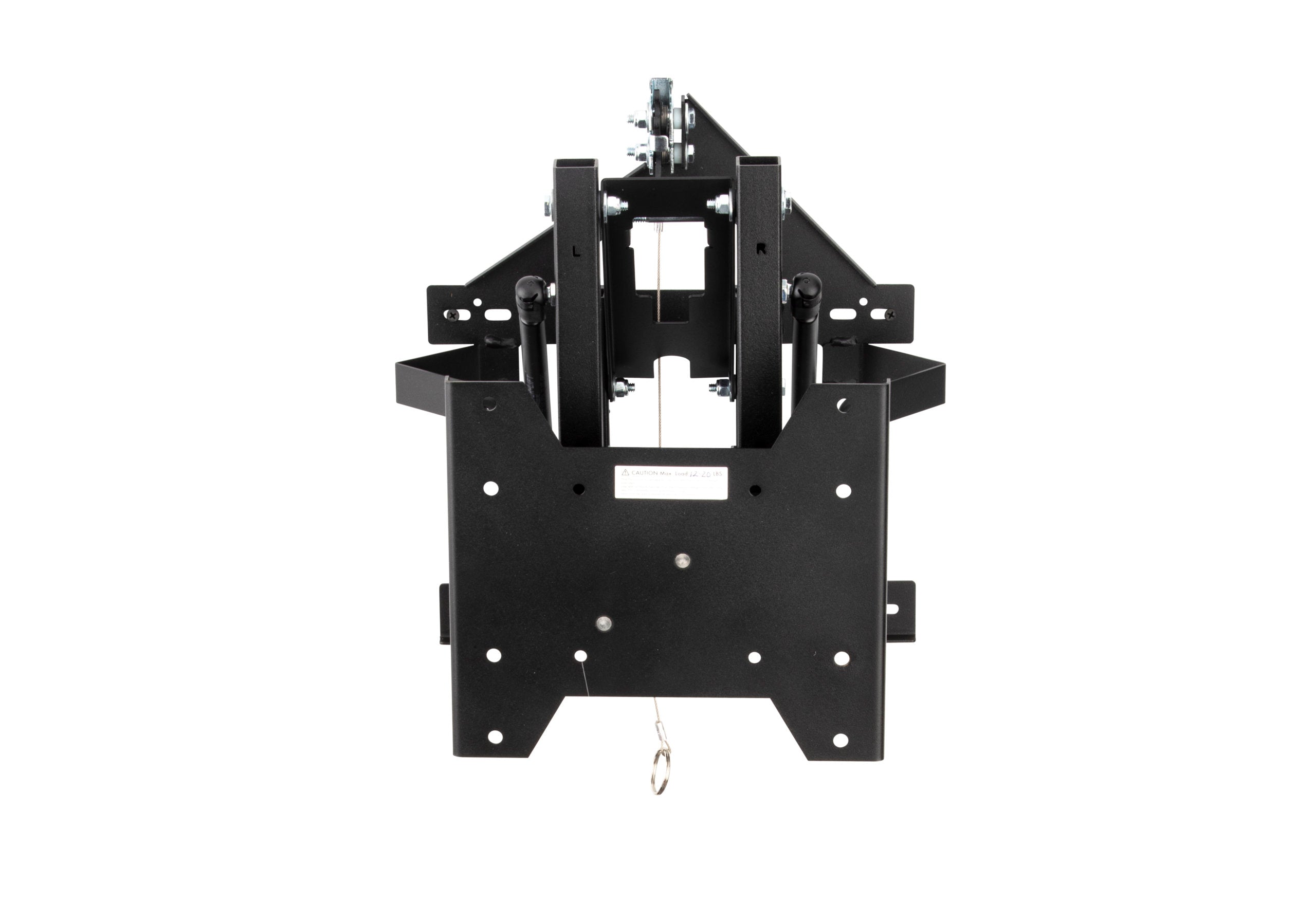

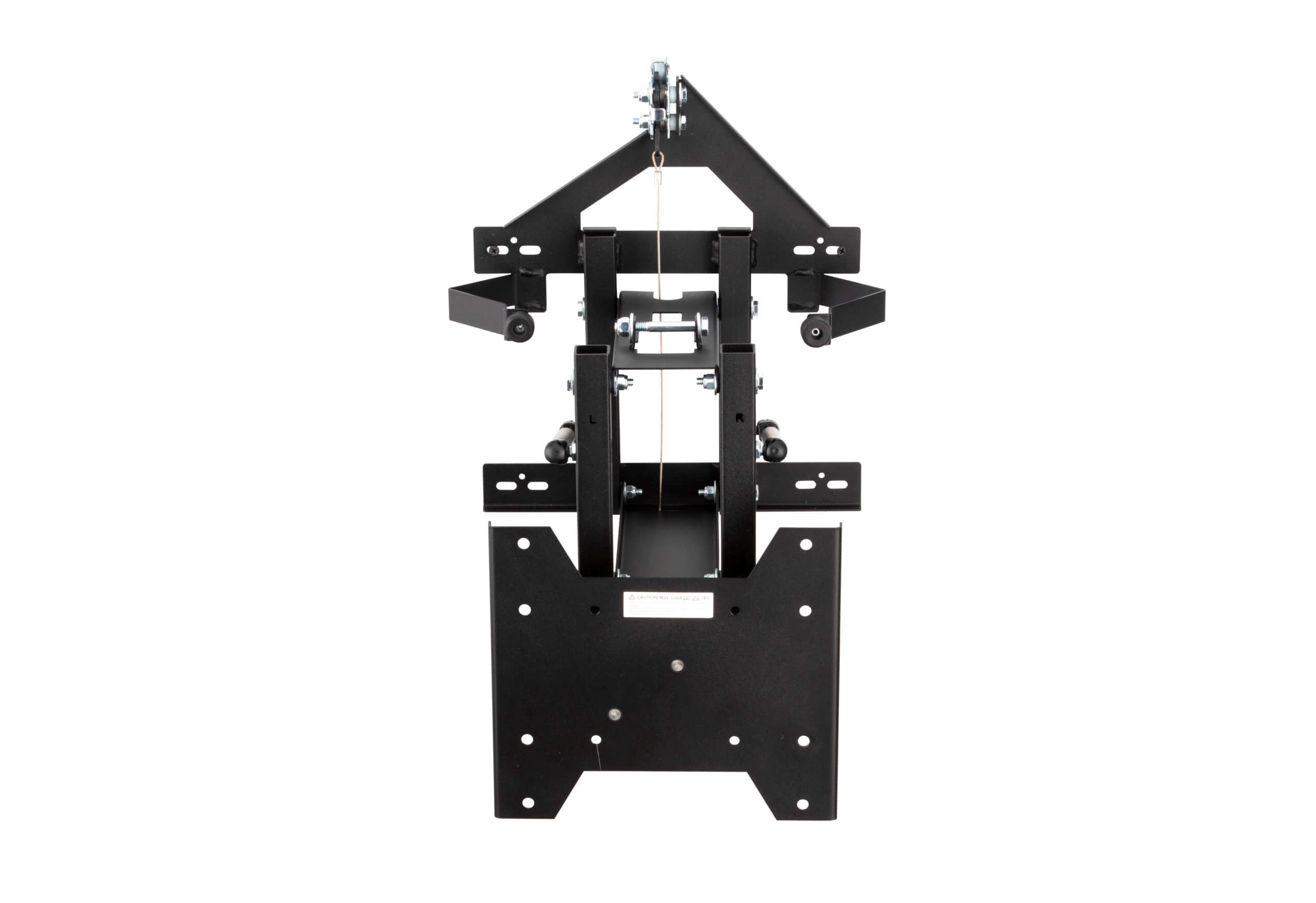

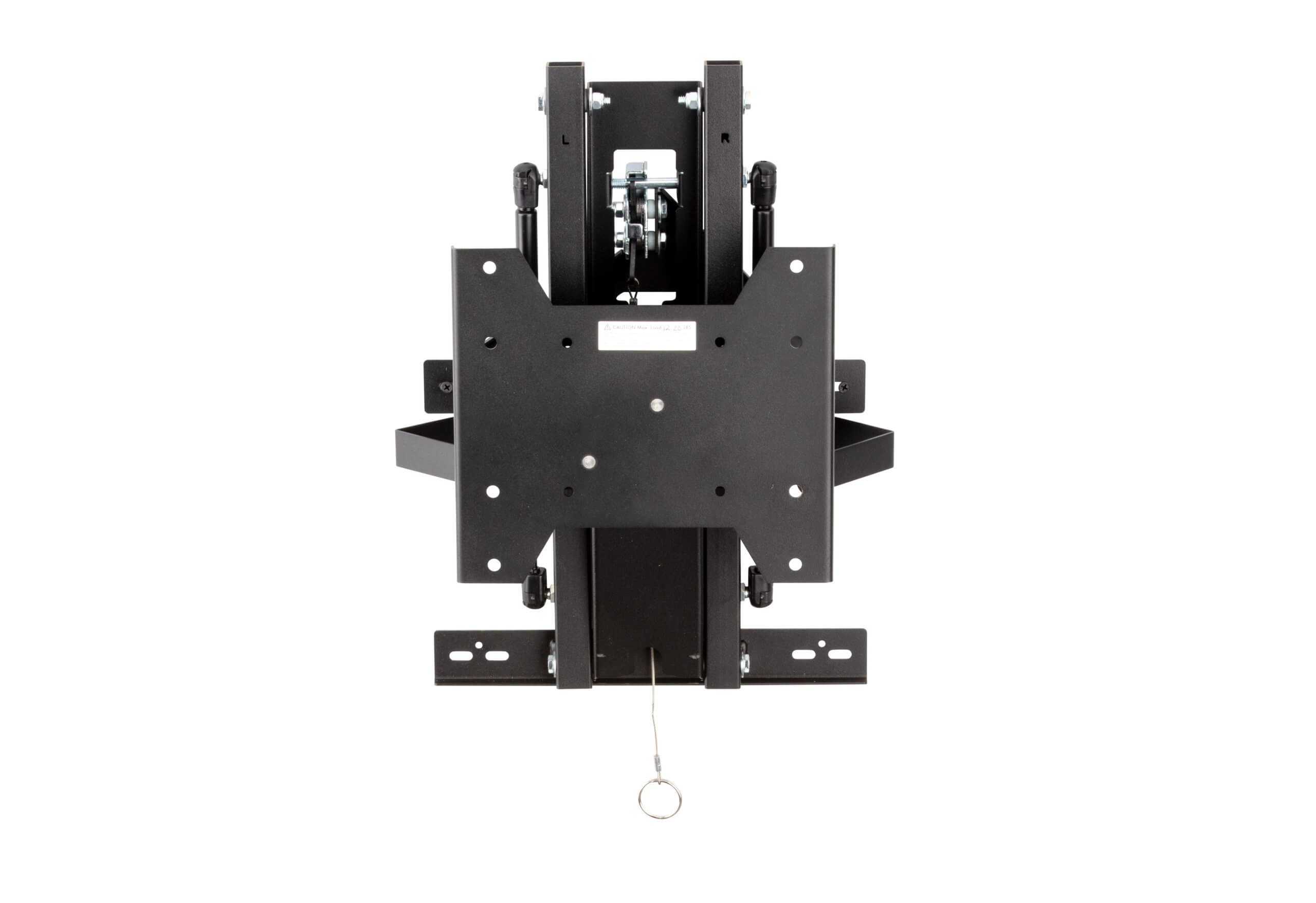

Drop Down TV Mount
This drop down wall TV mount gives you the right viewing angle and reduces glare to give you hours of enjoyment in your RV. Simply swivel your TV or monitor into position. When it’s time to travel, the mount locks in place for a secure ride.
- Drops down to 11.5"
- Swivels up to 50°
- 20 lb. weight capacity
- Drop-down wall mount
- Installation hardware
- Installation instructions
Keep your TV out of the way with a drop down wall mount for your RV. With a swivel adjustment, you can easily find the right viewing angle and avoid annoying glare on your TV or monitor.
AVOID GLARE on TV or monitor with drop down, swivel adjustment
TRAVEL SAFELY with TV locked in place
DIMENSIONS
- Overall – down position: 29.2″H x 13.3″W x 8.25″D
- Overall – up position: 17.6″H x 13.3″W x 5.2″D
VESA MOUNTING PATTERNS
- 100×100
- 200×200
Click HERE for installation instructions.
| Width (inches) | 15 |
|---|---|
| Height (inches) | 7 |
| Length (inches) | 19 |
| Weight (pounds) | 15 |
| Swivel angle (degrees) | 50 |
| Weight capacity (pounds) | 20 |
| Drop down length (inches) | 11.5 |
| Overall depth up position (inches) | 5.2 |
| Overall width up position (inches) | 13.3 |
| Overall height up position (inches) | 17.6 |
| Overall depth down position (inches) | 8.25 |
| Overall width down position (inches) | 13.3 |
| Overall height down position (inches) | 29.2 |
| Vesa mounting pattern 1 (millimeters) | 100x100 |
| Vesa mounting pattern 2 (millimeters) | 200x200 |
- What is the weight capacity of the morryde tv56-129h drop down tv mount? The weight capacity of the MORryde TV56-129H Drop Down TV Mount is 20 pounds.
- How far does the tv mount drop down? This TV mount drops down to 11.5 inches.
- What swivel range does the tv mount offer? The mount swivels up to 50 degrees to help you find the right viewing angle.
- Does the tv mount lock in place during travel? Yes, the mount locks in place to ensure a secure ride when it’s time to travel.
- What vesa mounting patterns are compatible with this tv mount? This TV mount is compatible with VESA mounting patterns 100x100 and 200x200.
