- TIME-SAVING — In under three minutes, Ground Control TT will level and stabilize your travel, so you can have more time to enjoy your camping experience
- INNOVATIVE TECHNOLOGY — Engineered with Hall Effect technology that delivers more accurate, precise leveling for your RV, and it’s compatible with OneControl® Technology

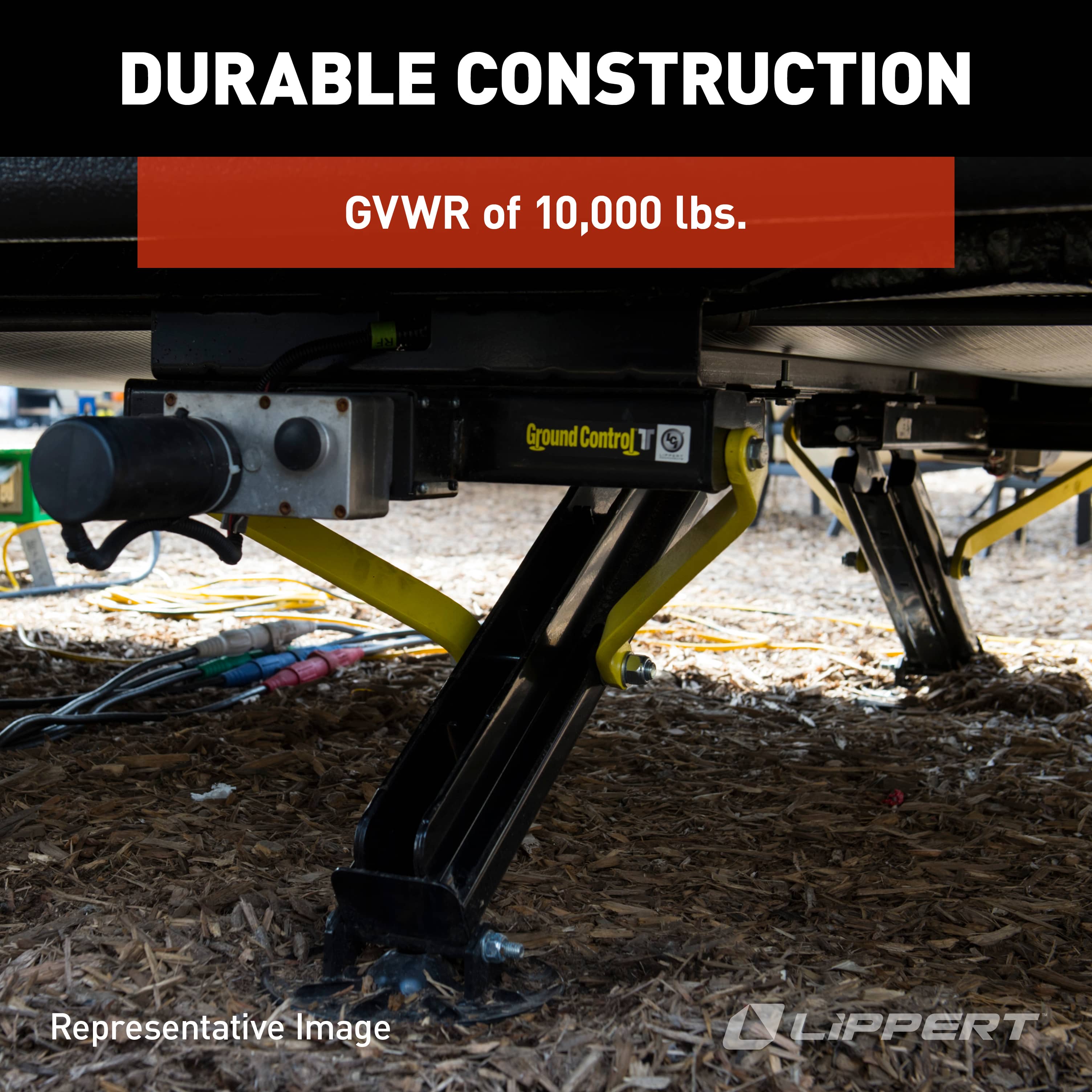

- DURABLE CONSTRUCTION — Built with heavy gauge steel and a powder-coat finish — when it comes to durability, this electric leveling system was made to withstand the elements and perform with efficiency, day after day
- FULLY EQUIPPED — This system comes complete with all mounting and installation hardware needed for an easy, bolt-on install with no welding required

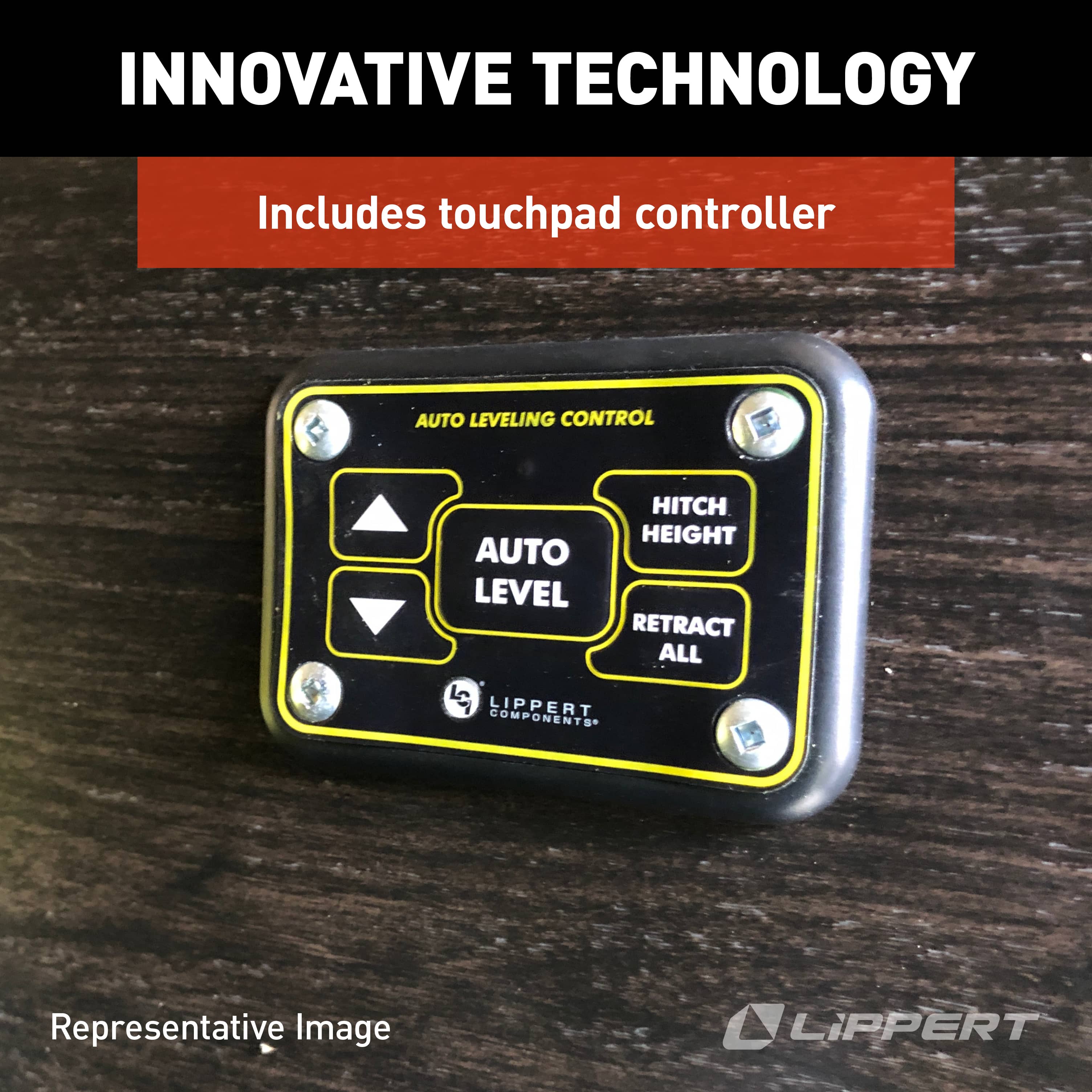

- TOUCHPAD CONTROL — The 5-point system includes our touchpad controller that can be wall-mounted for easy operation
Imagine pulling up to your campsite with the peace of mind knowing you never had to mess with manual jacks and chocks ever again. Sounds good, right? With the Ground Control® TT Automatic Leveling System by Lippert, that dream can come true. A push of a button is all it takes for this system to level your travel trailer in just a fraction of the time it would take you to do it manually.
Our intelligently designed system includes four, rear power jacks driven and one power tongue jack, that all work together to level your RV. This kit includes an easy-to-use touchpad that makes leveling your travel trailer as simple as pressing a few buttons. Plus, our lighted LCD screen is easy to operate and alerts you of the status of your leveling system. There are also indicator lights that let you know what functions are being performed. And better yet, the automatic re-hitch memory functionality stores your RV's position when you unhook from your tow vehicle so that it can quickly return to that position when you're all ready to hitch your trailer back up. Saving you even more time and hassle.

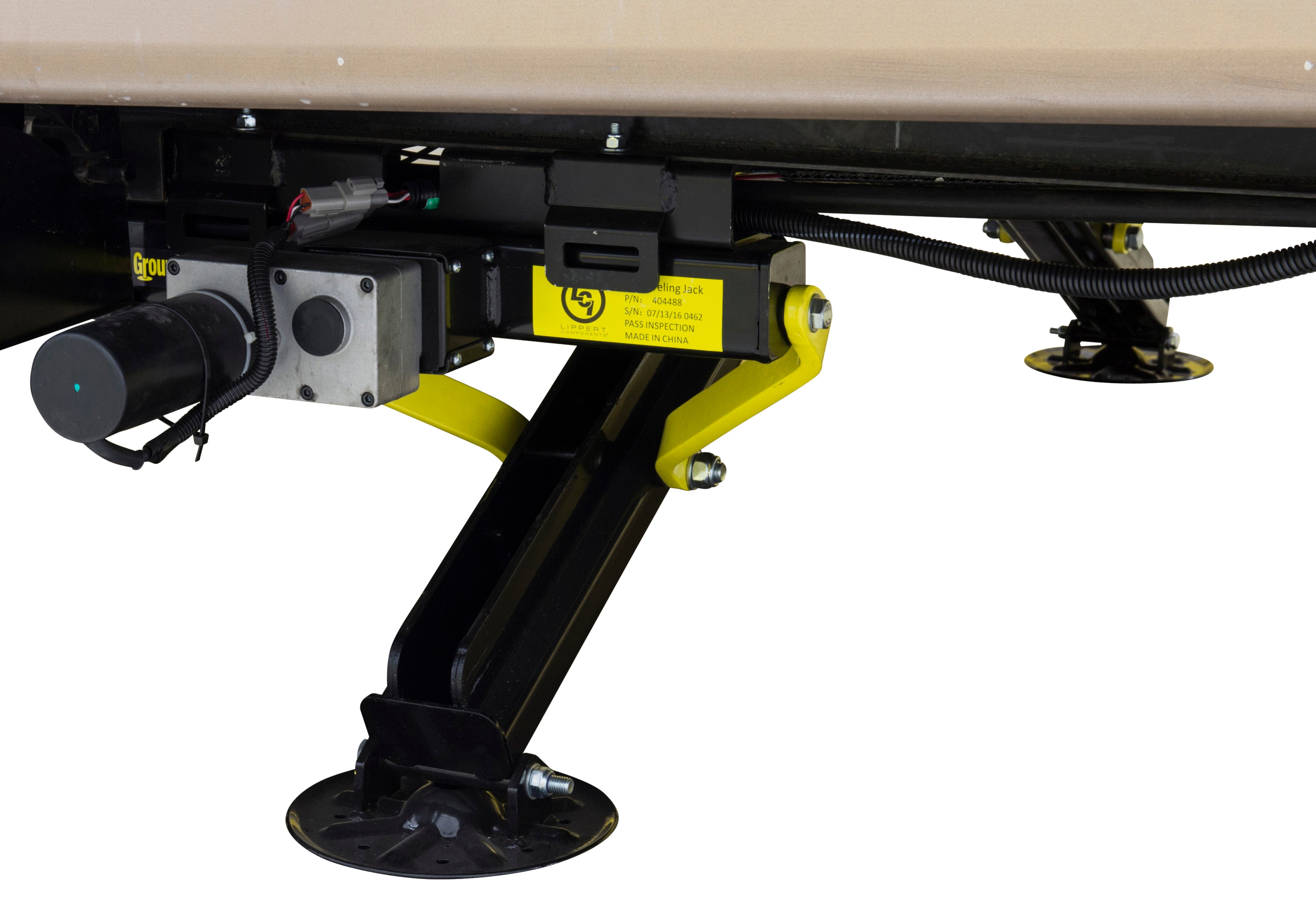

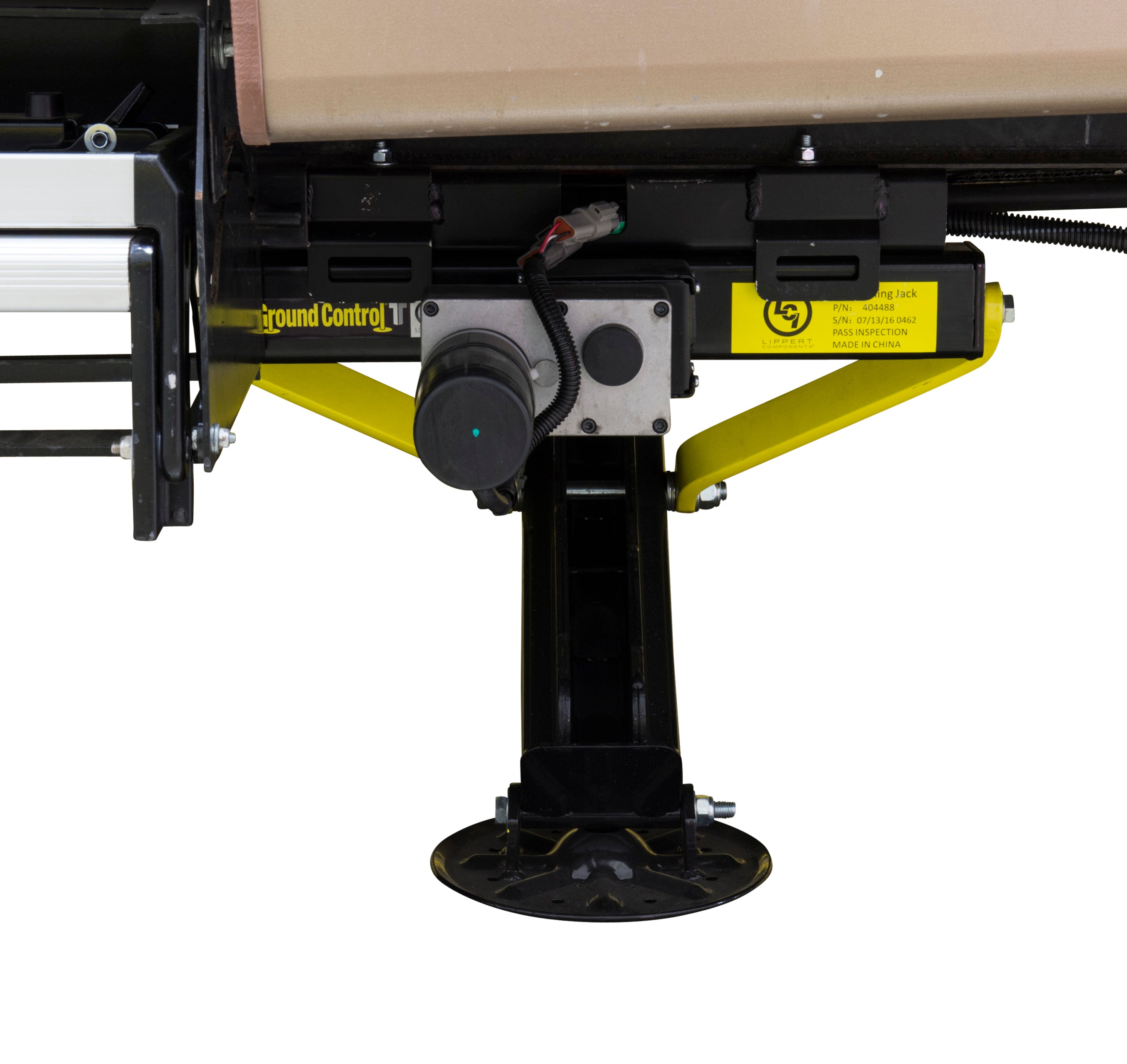

The jacks on the Ground Control TT use Hall Effect technology, which measures your jack leg’s motor revolutions, instead of amps — ensuring more accurate leveling for your 5th wheel RV or travel trailer. In the event of a power failure, manual access ports are located on the bottom and the top of each of the jack's motors, so your RV can still be raised or lowered if needed. This system is also compatible with Lippert’s OneControl® Technology — allowing you to operate your electric leveling system right from your phone if your travel trailer is equipped with a OneControl system and you have access to WiFi.
- Electric stabilization system for travel trailers

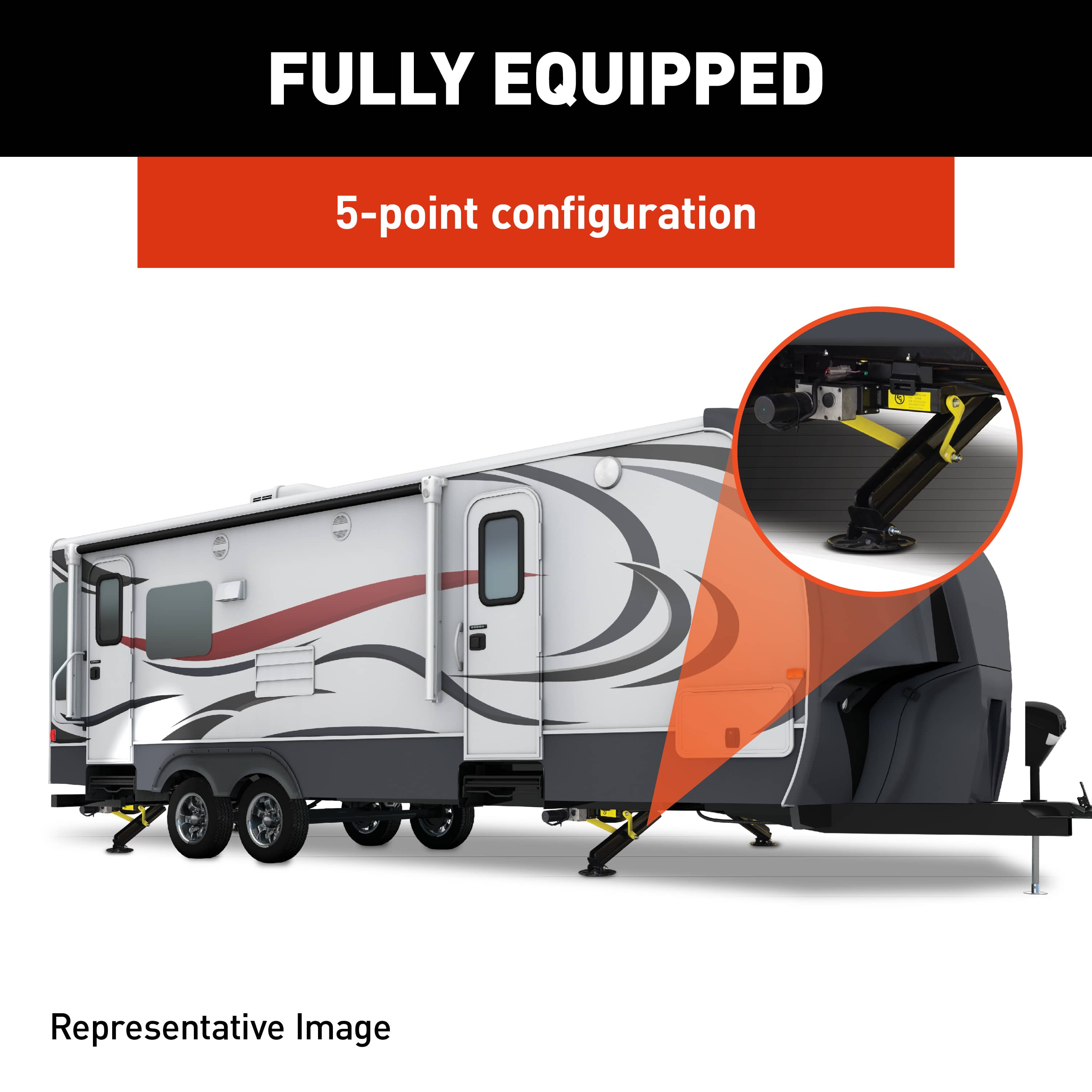

- 5-point configuration
- Wall-mounted, touchpad controller included
- Compatible with I-beam frames only
- Saves significant time setting up your campsite
- Maximum Gross Vehicle Weight Rating (GVWR) of 10,000 lbs.

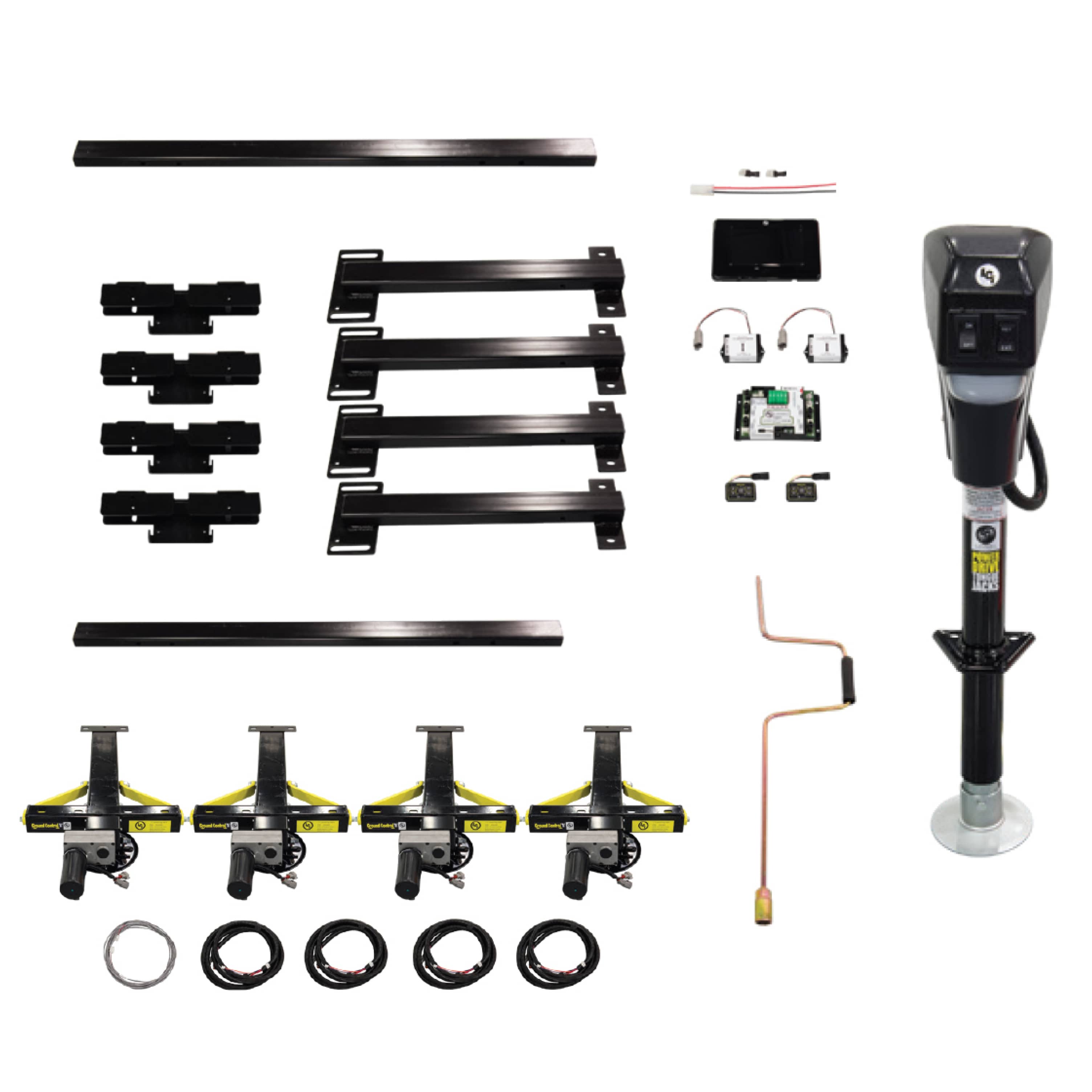

- Comes with all necessary hardware for installation
- Compatible with OneControl®
| Number of points | 5-point configuration |
|---|---|
| Controller type | Wall-mounted touchpad controller |
| Frame compatibility | I-beam frames only |
| Maximum gross vehicle weight rating (gvwr) (pounds) | 10000 |
| Materials | Heavy gauge steel with powder-coat finish |
| Technology used | Hall Effect technology |
| Power jack configuration | Four rear power jacks and one power tongue jack |
| Manual access ports | Located on the bottom and top of each jack motor |
| Control compatibility | Compatible with OneControl® Technology |
| Leveling time (minutes) | Under three minutes |
- How long does it take for the lippert ground control tt to level a travel trailer? The Ground Control TT will level and stabilize your travel trailer in under three minutes.
- Is the ground control tt compatible with all types of travel trailer frames? The Ground Control TT is compatible with I-beam frames only.
- Can i control the leveling system remotely with my phone? Yes, the system is compatible with Lippert’s OneControl® Technology, allowing remote operation via your phone if your travel trailer is equipped with a OneControl system and you have WiFi access.
- What technology does the ground control tt use for accurate leveling? The Ground Control TT uses Hall Effect technology, which measures jack leg motor revolutions for more precise and accurate leveling.
- Does the system come with all the necessary hardware for installation? Yes, the Ground Control TT comes fully equipped with all mounting and installation hardware needed for an easy, bolt-on installation with no welding required.
