Covenant 36" Electric RV Fireplace Insert – Flush Mount, Flat Front with Crystals & Remote Control
Bring warmth and modern elegance to your RV with the Covenant 36" Electric RV Fireplace Insert. Designed for flush-mount installation, this OEM replacement unit features a stylish flat front panel and a crystal ember bed that enhances your space with a cozy, upscale ambiance.
Key Features:
- 6 Flame Variations: Customize both the flame color and style with six dynamic visual options to match your RV’s interior and your mood.
- Thermostatic Heating: The 1500W heating element efficiently warms your space and automatically pauses once your set temperature is reached, maintaining ideal comfort.
- Dual Control Options: Operate the fireplace directly via the onboard touch control panel or use the included remote control for added convenience.

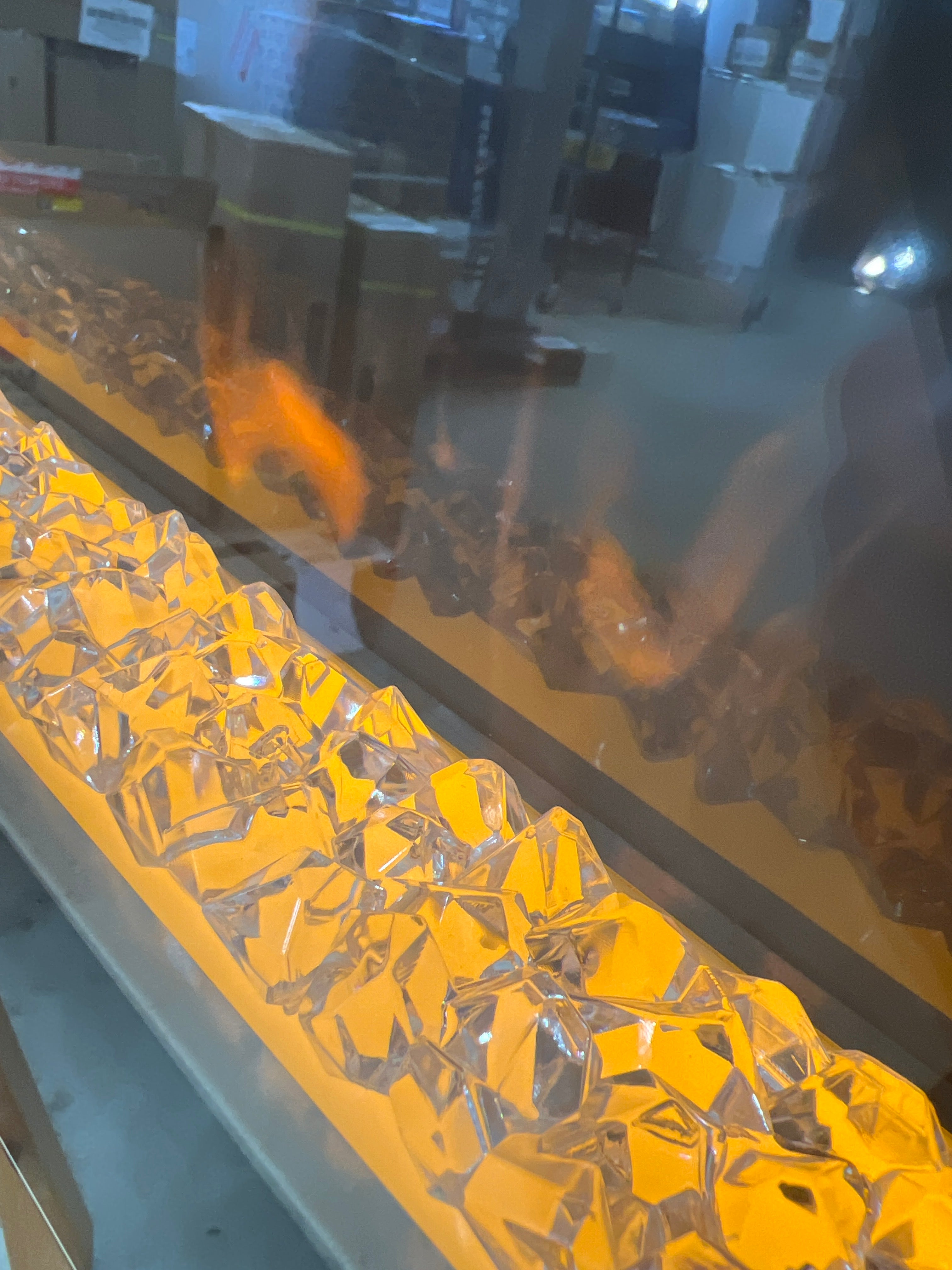

- Sleek Crystal Display: The shimmering crystal ember bed and clean flat-front design make this a visual centerpiece, even when the unit is powered off.
Specifications:

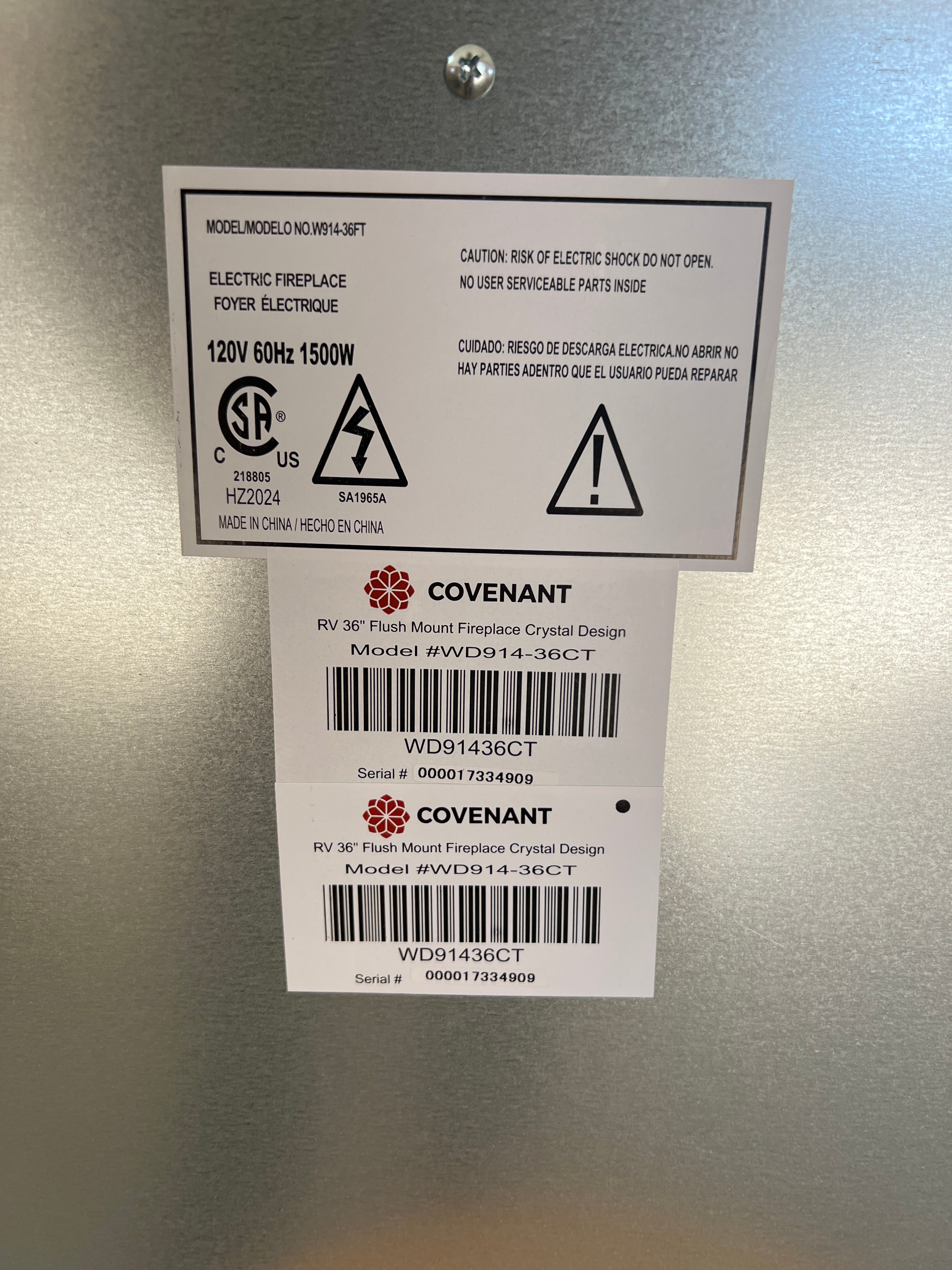

- Power Supply: 120V AC
- Frequency: 60Hz
- Power: 1500W

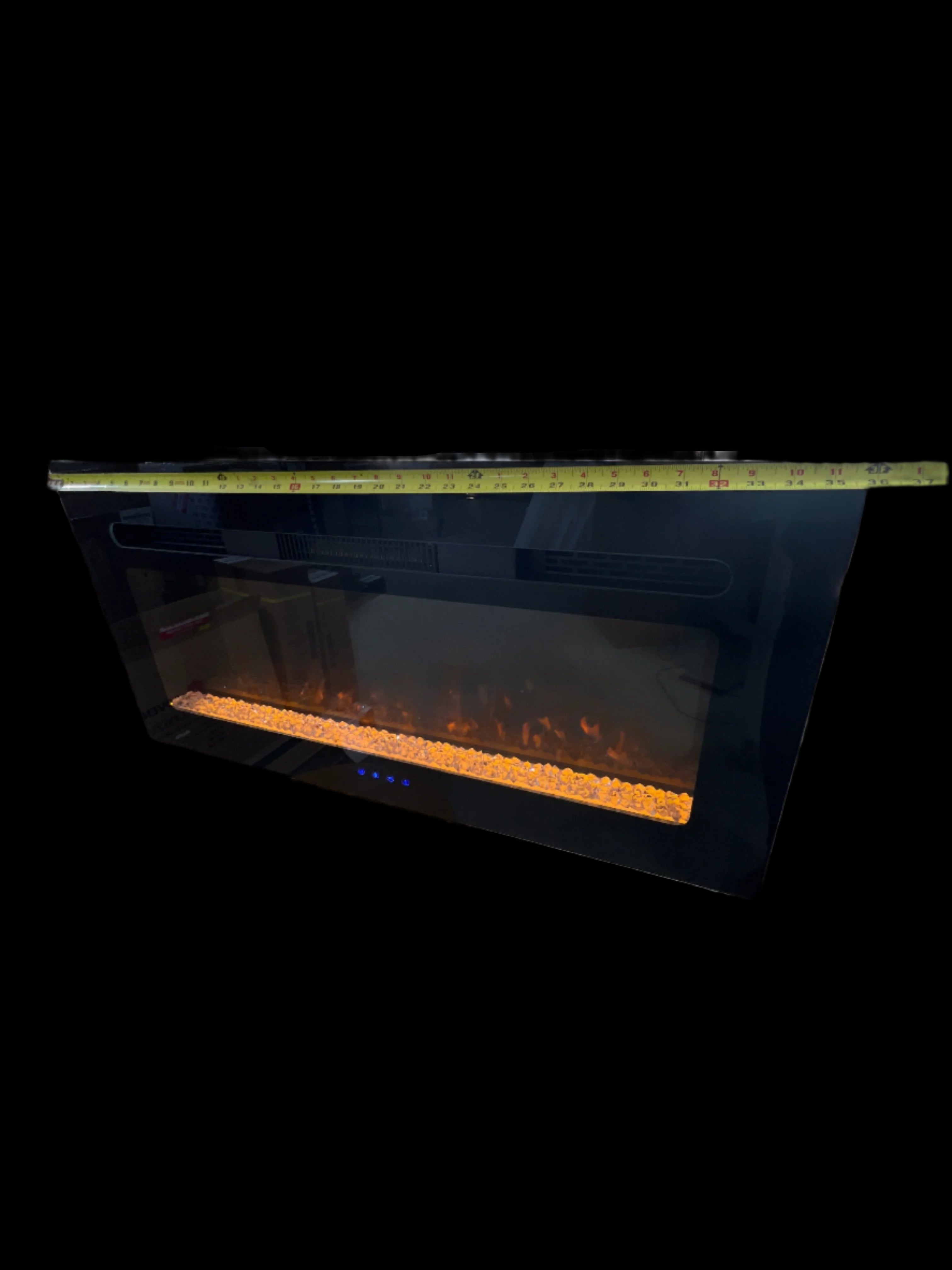

- Unit Dimensions: 36" (W) x 6.2" (D) x 17.7" (H)
- Cutout Dimensions: 32.75" (W) x 6.313" (D) x 17.125" (H)
What’s Included:
- 36" Electric Fireplace Insert
- Remote Control
- User Manual
This fireplace is a direct OEM replacement and installs cleanly into existing cutouts. Ideal for RV upgrades, remodels, or factory replacements.
Click here for the instruction manual
Enhance your RV lifestyle with the Covenant 36" Electric Fireplace Insert—designed to deliver comfort, control, and contemporary style on the road.
Need Visual Help?
Watch these quick repair guides to help you troubleshoot and fix common fireplace issues:
Will Not Turn On Or Off
Q: won't shut off when reaching temp
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Suggestions: 1) To disconnect the main power supply for about 15 minutes, and restart it after Overheat protection cools off. 2) The ambient temperature is too low, preheat first, the PC board is set to start at low temperatures: 23°F to 32°F turn on and wait 30 seconds before turning on the heat -5°F to 5°F turn on and waith 2 mins before turning on the heat.
Q: won't stay on. Clicks on and off very fast and remains off.
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: will not turn on
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: will turn on and then shuts off after a few seconds
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: was working and then shut off and wouldn't turn back on.
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: will not stay on
Reason: Overheat protection automatically disconnects
Solution 1: Replace the fan heating component
Q: works intermittently
Reason: The set temperature was too low, or reached at critical point.
Solution 1: Adjust high temperature
Q: will turn on but none of the functions will work.
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: will not shut off with button or remote. Have to turn off breaker
Reason: PC board faulty
Solution 1: Replace the PC board (Touchscreen / Physical Button)
Q: smells hot
Reason: The residual oil on the heating element wire will have a smell on the first operation.
Solution 1: It will clear off after the first few minutes
Fan And Heat Element
Q: Heating element turning red and shutting off
Reason: The Fan is not turning
Solution 1:: Replace the fan heating component
Q: Noisy fan
Reason: A tie cable or wire possibly touching the fan wheel
Solution 1:: Open the top panel and check if the wire is touching the fan wheel , move the wire that is touching the fan wheel.
Q: Heating element and fan will not turn off
Reason: PC board failure
Solution 1:: Replace the PC board (Touchscreen / Physical Button)
Q: No heat or fan
Reason: PC board failure
Solution 1:: Replace the PC board (Touchscreen / Physical Button)
Flames
Q: Clicking noise when flame is turning.
Solution 1:: Remove the back panel and check the flame film to see if it's hitting the side brackets
Solution 2:: Replace the Synchronous motor
Q: Flames not rotating
Solution 1:: Replace the fan motor
Solution 2:: Replace the control board
Q: noisy flame motor
Solution 1:: Check the flicker and remove other objects
Solution 2:: Replace the Synchronous motor
Led Lights
Q: LED out on half
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: LED light not working
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: LEDs are intermittent
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Q: Left side or right side of LED under logs not lighting up
Solution 1:: Check for loose connectors on the PC board and connection on LED bar
Solution 2:: Replace LED bar
Solution 3:: Replace PC Board
Lcd Display
Q: LCD display not working
Solution 1: Check for loose connector on the PC board and display
Solution 2: Replace the display
Solution 2:: Replace PC Board
Q: LCD display hanging
Solution 1: Replace springs that came off of the bracket. Should be laying the bottom of unit
| Power supply | 120V AC |
|---|---|
| Power (watts) | 1500 |
| Frequency (hz) | 60 |
| Width (inches) | 8 |
| Height (inches) | 39 |
| Length (inches) | 19 |
| Unit depth (inches) | 6.2 |
| Unit width (inches) | 36 |
| Unit height (inches) | 17.7 |
| Cutout depth (inches) | 6.313 |
| Cutout width (inches) | 32.75 |
| Cutout height (inches) | 17.125 |
| Physical weight (pounds) | 30 |
| Dimensional weight (pounds) | 43 |
- What are the dimensions of the covenant 36" electric rv fireplace insert? The unit dimensions are 36 inches wide, 6.2 inches deep, and 17.7 inches high. The cutout dimensions for installation are 32.75 inches wide, 6.313 inches deep, and 17.125 inches high.
- Does the covenant 36" electric rv fireplace come with remote control? Yes, the fireplace includes a remote control for convenient operation along with an onboard touch control panel.
- How many flame variations does this electric fireplace offer? The fireplace offers 6 flame variations allowing customization of both flame color and style to suit your RV interior and mood.
- What type of heating does the covenant 36" electric rv fireplace use? It uses a 1500W thermostatic heating element that efficiently warms your space and automatically pauses once the set temperature is reached to maintain comfort.
- Can the fireplace be flush-mounted in my rv? Yes, this fireplace is designed for flush-mount installation and is a direct OEM replacement that fits cleanly into existing cutouts in your RV.
