Strut Assist 4 Step (STP-214 is for 30" Door Width)

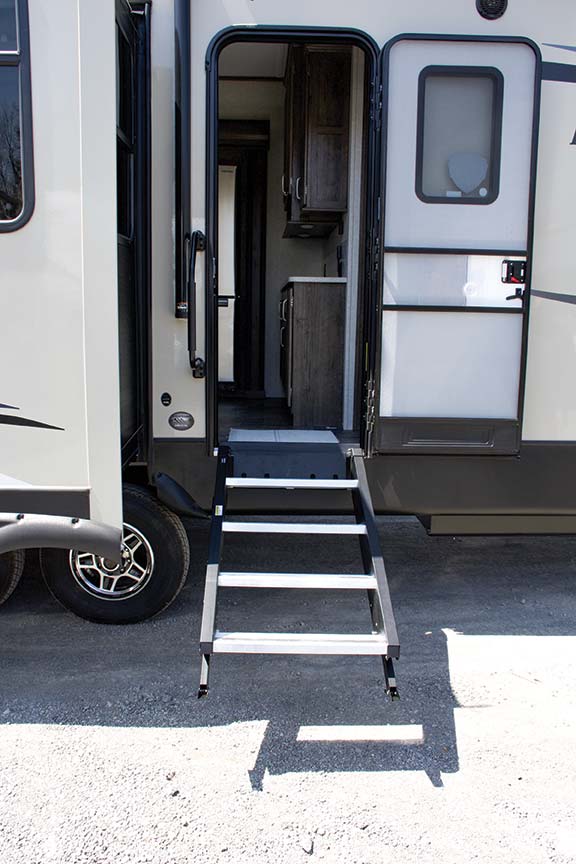

Easily operate your StepAbove step system for your trailer or 5th wheel with our innovative strut assist. The self-contained, ground-stable entry system provides sure footing when you enter or exit your RV.
• Handrail sold separately.
- Gas struts lift and lower step
- Weightless operation
- Lightweight pull-down design
- Easy storage
- 500 lb. weight capacity
-

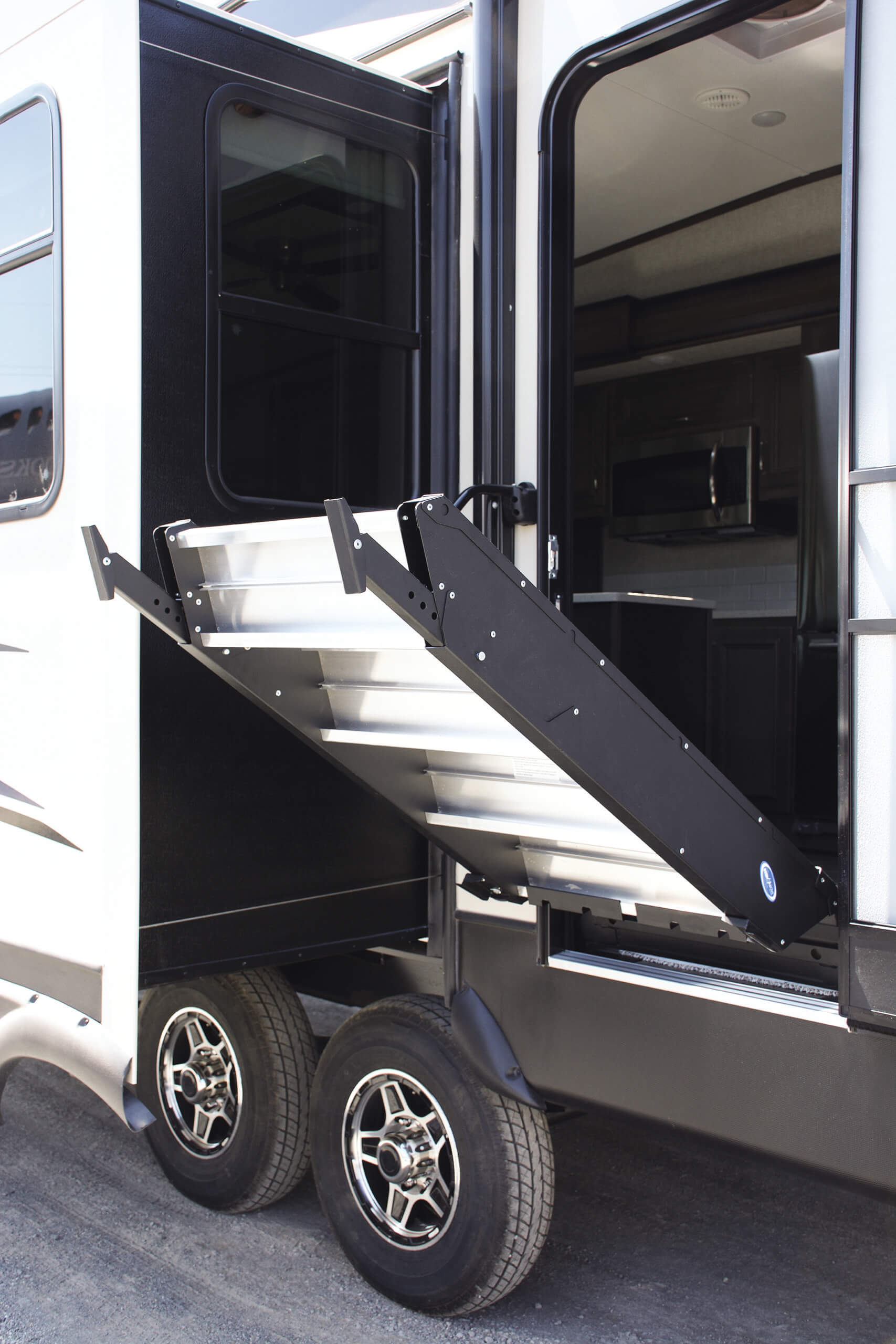

Easily lower and raise your pull-down 2nd Generation StepAbove step system to give you bounce-free, wobble-free stability. Gas struts do all the work for you.
EASILY LIFT AND LOWER STEP with one finger
WIDE TOP STEP – Larger top step for safe and secure footing
GRADUAL STEP SLOPE – Redesigned step slope allows for full-foot placement on each step

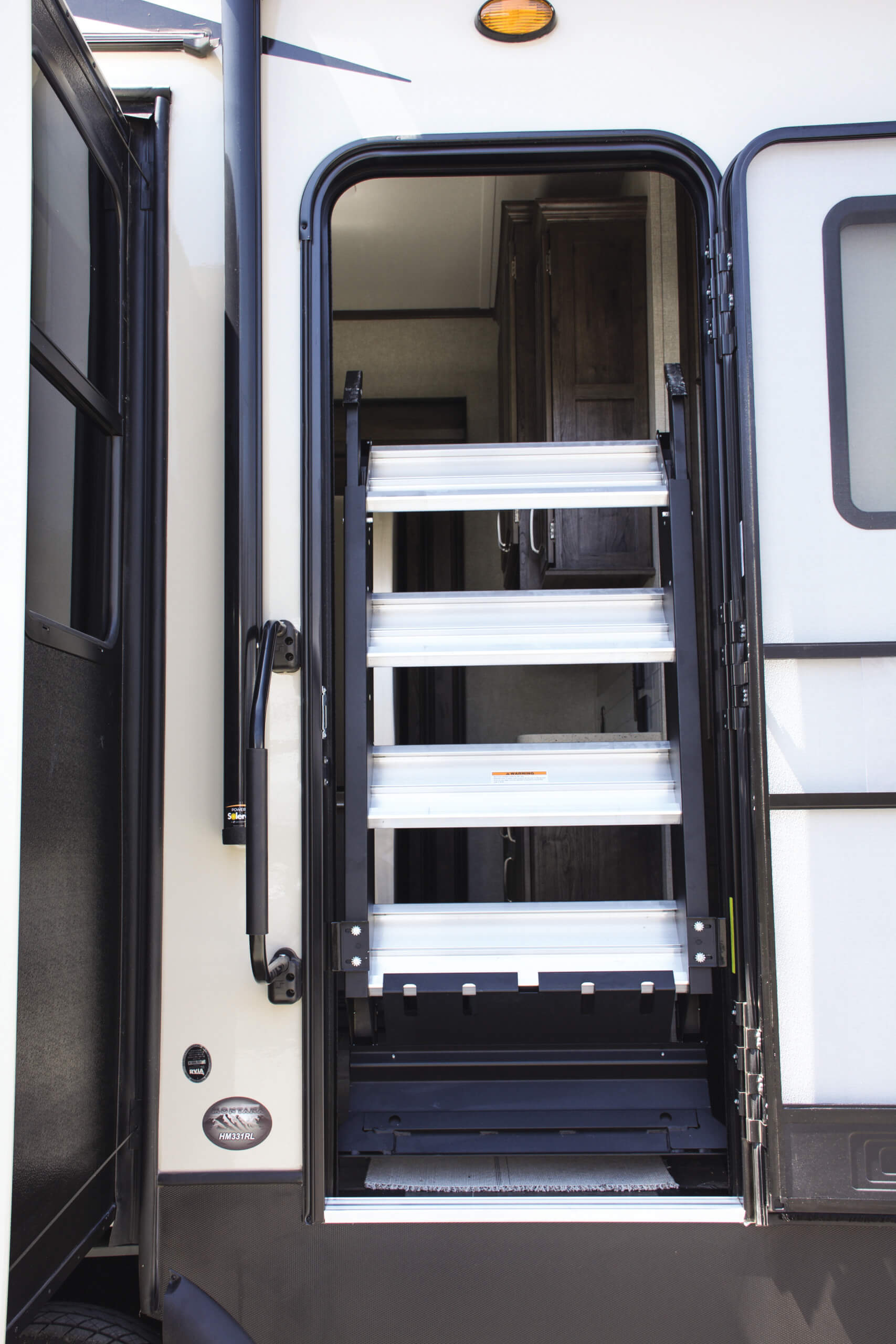

SELF-CONTAINED STORAGE – Stores securely inside the door for easy access
QUICK RELEASE LEG ADJUSTMENT – Auto-deploy legs adjust and retract with a push of a button
CHOOSE 3 OR 4 STEPS to fit your RV
-
OPTIONS
- Motion Activated Lights – STP54-032
- Storage box STP54-099
- 4-Step Handrail – STP214-006H
- 4-Step Handrail (2nd Gen) – STP214-120H
Click here to open the Strut Assist Qualifier Guide to check for compatibility.
Click here for the installation instructions.
| PART NUMBER | STEP HEIGHT | STEP RISE | DOOR WIDTHSIZE FROM FACTORY LABEL | DOOR WIDTHSIZE FROM FLANGE TO FLANGE | |
|---|---|---|---|---|---|
| STRUT ASSIST 4 STEP | STP-211 | 37.5"-42" | 8" | 26" | 23.75"-24.25" |
| STP-214 | 37.5"-42" | 8" | 30" | 27.75"-28.25" |
| Width (inches) | 14 |
|---|---|
| Height (inches) | 37 |
| Length (inches) | 65 |
| Step rise (inches) | 8 |
| Weight capacity (pounds) | 500 |
| Step height maximum (inches) | 42 |
| Step height minimum (inches) | 37.5 |
| Product physical weight (pounds) | 90 |
| Door width from factory label (inches) | 30 |
| Door width from flange to flange maximum (inches) | 28.25 |
| Door width from flange to flange minimum (inches) | 27.75 |
- What is the weight capacity of the morryde stp-214 strut assist 4 step? The MORryde STP-214 Strut Assist 4 Step has a weight capacity of 500 lbs.
- Is the handrail included with the morryde stp-214 strut assist 4 step? No, the handrail is sold separately.
- What door width is the morryde stp-214 designed to fit? The MORryde STP-214 is designed to fit a 30-inch door width.
- Can the step system be easily lifted and lowered? Yes, the gas struts allow for weightless operation and the step can be lifted and lowered easily with one finger.
- Are there any options available for the morryde stp-214 strut assist 4 step? Yes, options include motion activated lights, a storage box, and 4-step handrails including a 2nd generation handrail.
