Description
Strut Assist 3 Step (STP-210 is for 30" Door Width)
Easily operate your StepAbove step system for your trailer or 5th wheel with our innovative strut assist. The self-contained, ground-stable entry system provides sure footing when you enter or exit your RV.
• Handrail sold separately.
Ships via LTL and on SKID
- Gas struts lift and lower step
- Weightless operation
- Lightweight pull-down design
- Easy storage
- 500 lb. weight capacity
-
Easily lower and raise your pull-down 2nd Generation StepAbove step system to give you bounce-free, wobble-free stability. Gas struts do all the work for you.
EASILY LIFT AND LOWER STEP with one finger
WIDE TOP STEP – Larger top step for safe and secure footing
GRADUAL STEP SLOPE – Redesigned step slope allows for full-foot placement on each step
SELF-CONTAINED STORAGE – Stores securely inside the door for easy access
QUICK RELEASE LEG ADJUSTMENT – Auto-deploy legs adjust and retract with a push of a button
CHOOSE 3 OR 4 STEPS to fit your RV
-
OPTIONS
- Motion Activated Lights – STP54-032
- Storage box STP54-099
- 4-Step Handrail – STP214-006H
- 4-Step Handrail (2nd Gen) – STP214-120H
-
FIT CHART | SPECIFICATIONS
PART NUMBER STEP HEIGHT STEP RISE DOOR WIDTHSIZE FROM FACTORY LABEL DOOR WIDTHSIZE FROM FLANGE TO FLANGE STRUT ASSIST 3 STEP STP-210 31.5"-37.5" 9" 30" 27.75"-28.25" STP-205 31.5"-37" 9" 26" 23.75"-24.25"
Click here to open the Strut Assist Qualifier Guide to check for compatibility.
Click here for the installation instructions.

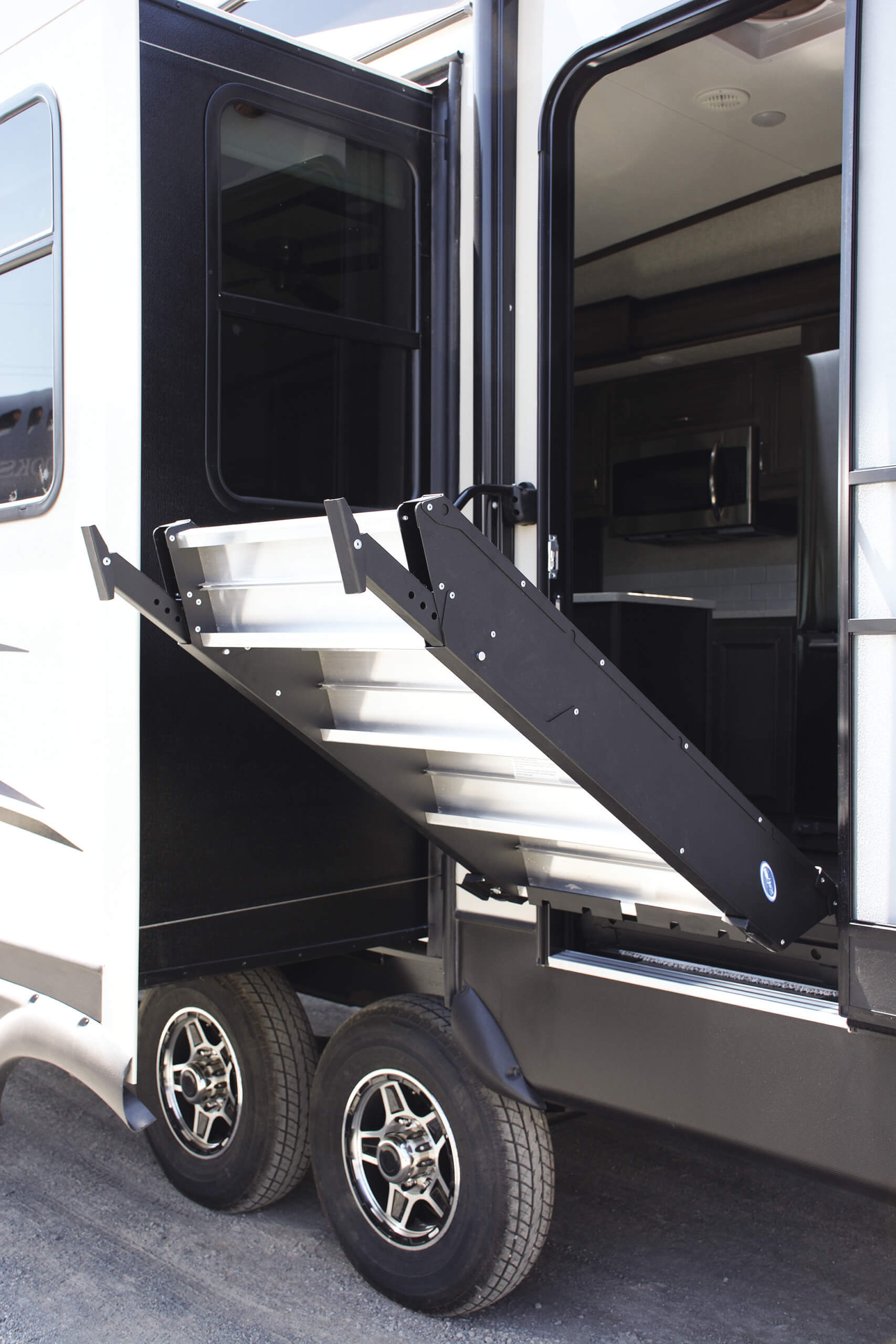

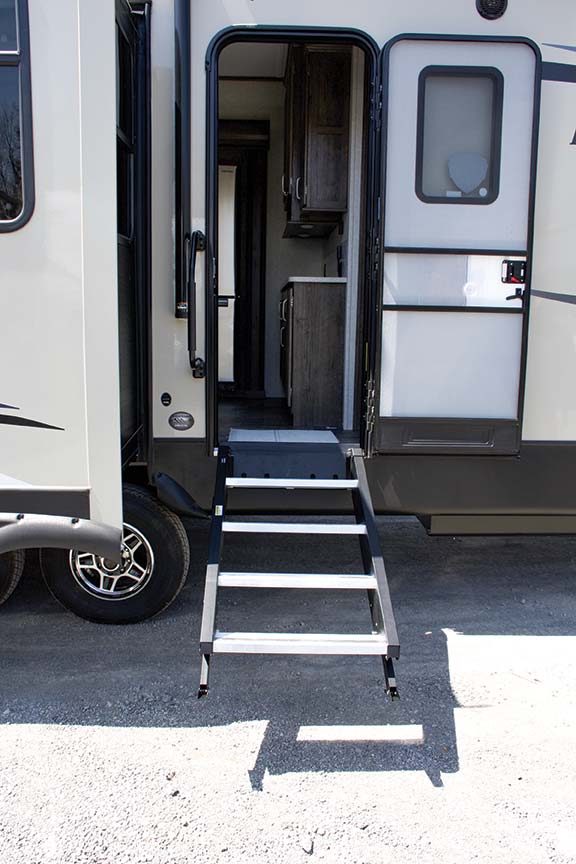

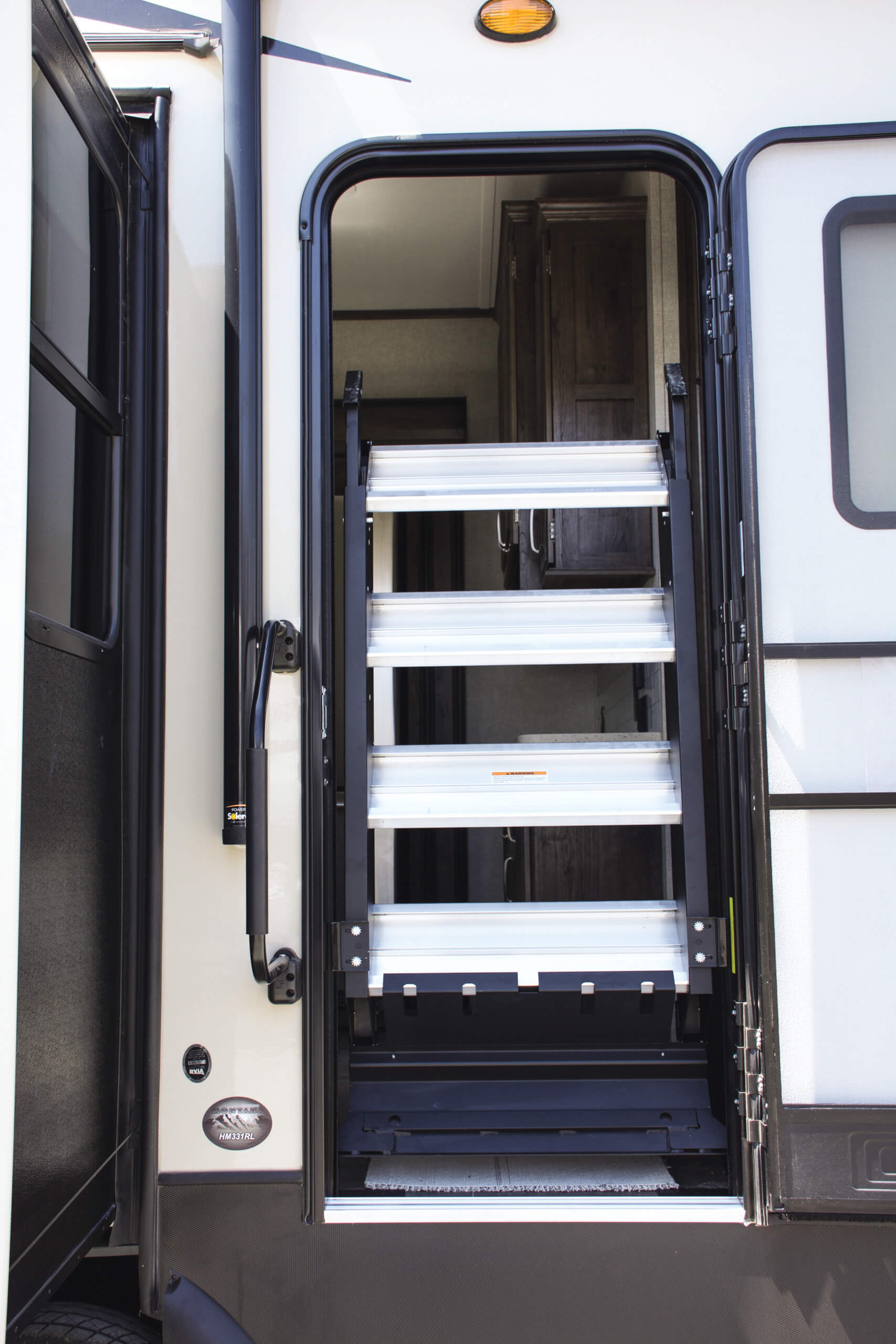

Please note: Pictures below show 4 step instead of 3 step.
