Heavy-Duty Shackle Kit - Tandem Axle w/Correct Track*

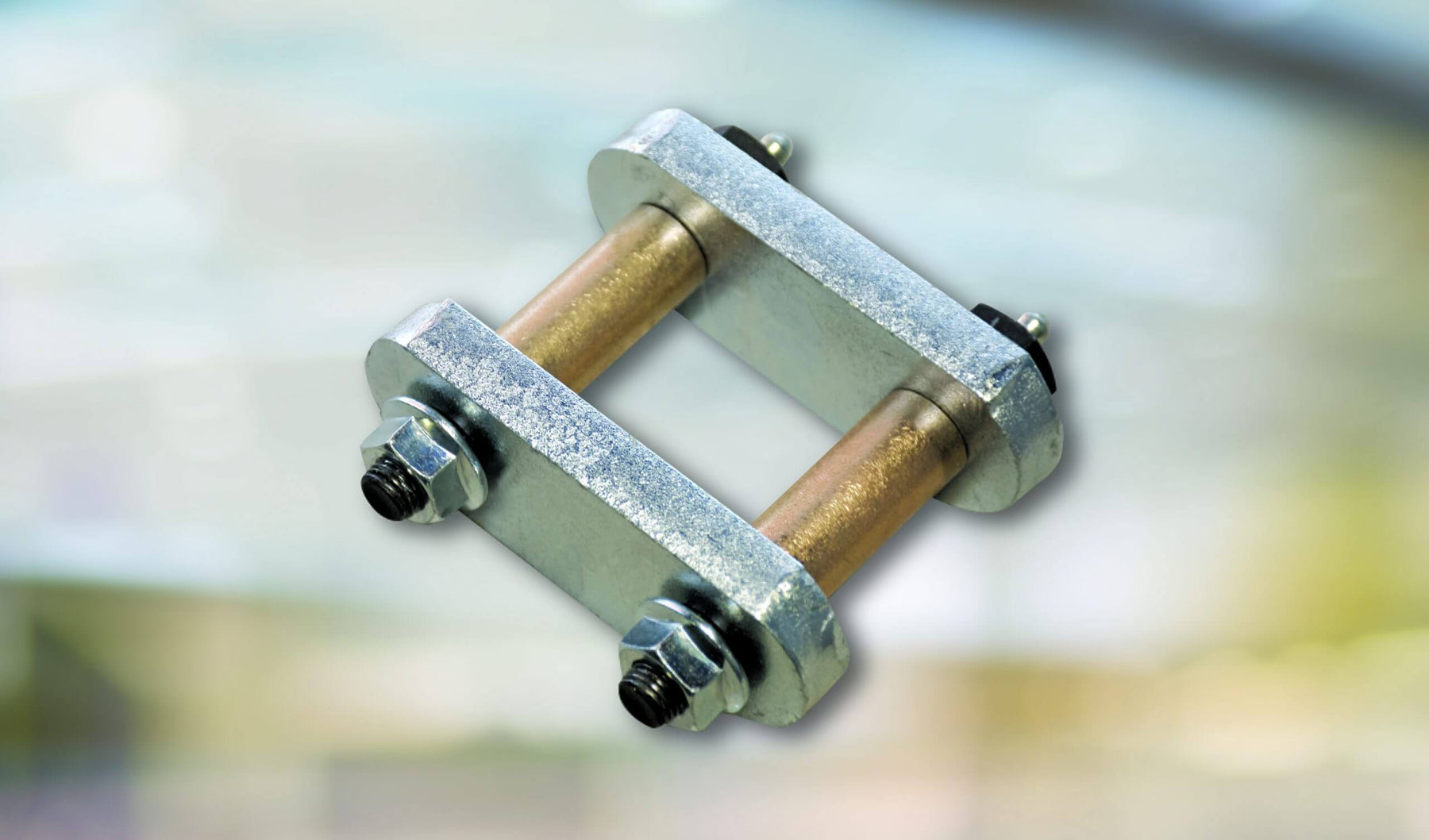

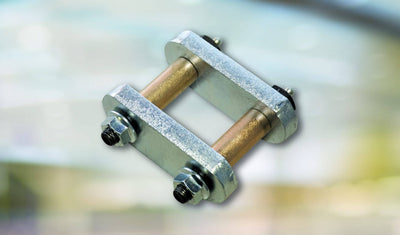

STRENGTHEN RV RUNNING GEARGet peace of mind knowing your RV can handle even the roughest roads when you add this heavy-duty shackle kit to your suspension system. The 1/2-inch shackle links are stronger and more durable than stock shackles. That means the bracket is much less likely to elongate. Easily extend the life of your bushings and bolts with periodic lubrication.

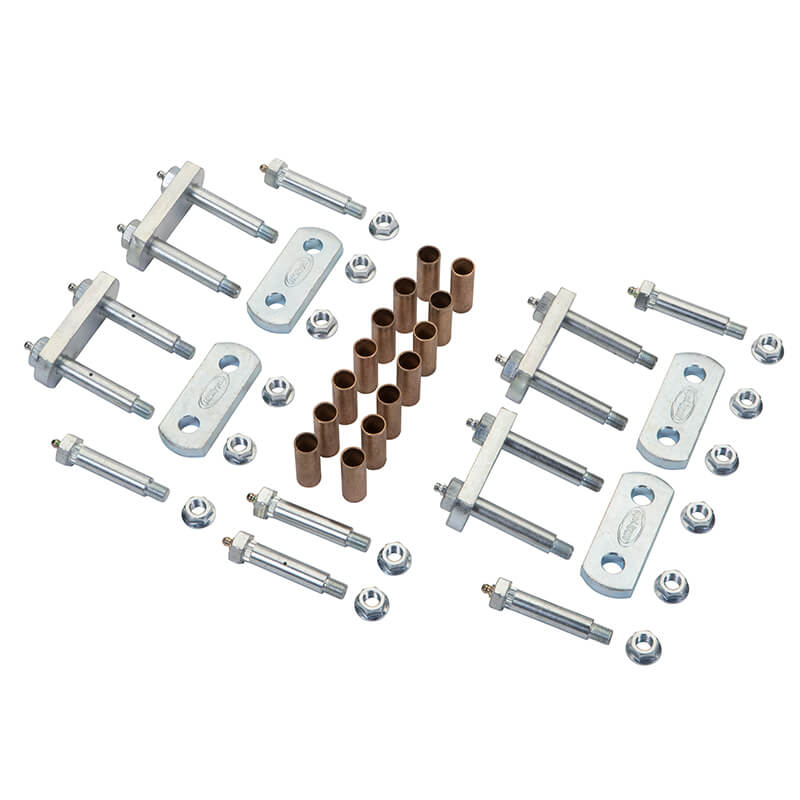

- Thicker, heavy-duty design
- Durable bronze bushings
- Easy maintenance, greaseable bolts
- Loctite nuts
* OEM Correct Track Hanger* is an alignment system identified by an octagon-shaped washer on the end frame hangers. It must be factory-installed for our wet bolts to work. If it was installed in the aftermarket, original bolts will have to be used. We recommend high-temp lithium grease and greasing 2 times a year or every 6-10K miles.
Click HERE for wet bolt installation instructions.
Click HERE for wet bolt & shackle kit product instructions.
Click HERE for LRE wet bolt kit installation instructions.
Click HERE for SMOOTH SAILING - TRAILER LIFE article.
Technical specs:
| SUSPENSION | AXLES | PART NUMBER / STANDARD HANGER | PART NUMBER / OEM CORRECT TRACK HANGER* |
| LRE | Tandem | LRE12-001 | LRE12-016 |
| Triple | LRE12-004 | LRE12-017 | |
| SRE4000, CRE3000, Stock with 2-1/4″ shackles | Tandem | UO12-016 | UO12-029 |
| Triple | UO12-023 | UO12-030 | |
| Stock with 3-1/8″ shackles | Tandem | UO12-021 | UO12-031 |
| Triple | UO12-024 | UO12-032 |
| Width (inches) | 14 |
|---|---|
| Height (inches) | 11 |
| Length (inches) | 15 |
| Bushing material | bronze |
| Physical weight (pounds) | 15 |
| Dimensional weight (pounds) | 17 |
| Shackle link thickness (inches) | 0.5 |
- What type of trailers is the morryde lre12-016 shackle upgrade kit designed for? The MORryde LRE12-016 Heavy Duty Shackle Upgrade Kit is designed for tandem axle trailers with the OEM Correct Track hanger system.
- What are the main features of the morryde lre12-016 shackle upgrade kit? The kit features a thicker, heavy-duty design, durable bronze bushings, easy maintenance with greaseable bolts, and Loctite nuts for secure installation.
- What maintenance is recommended for the morryde heavy-duty shackle kit? It is recommended to lubricate the bushings and bolts with high-temp lithium grease twice a year or every 6,000 to 10,000 miles to extend their life.
- Does the morryde lre12-016 kit include wet bolts, and what is required for their use? Yes, the kit includes wet bolts that work only if the OEM Correct Track hanger system was factory-installed, identified by an octagon-shaped washer on the end frame hangers.
- Where can i find installation instructions for the morryde lre12-016 shackle upgrade kit? Installation instructions for the wet bolts and shackle kit are available through the provided links in the product description, including specific PDFs for wet bolt installation and the LRE wet bolt kit.
